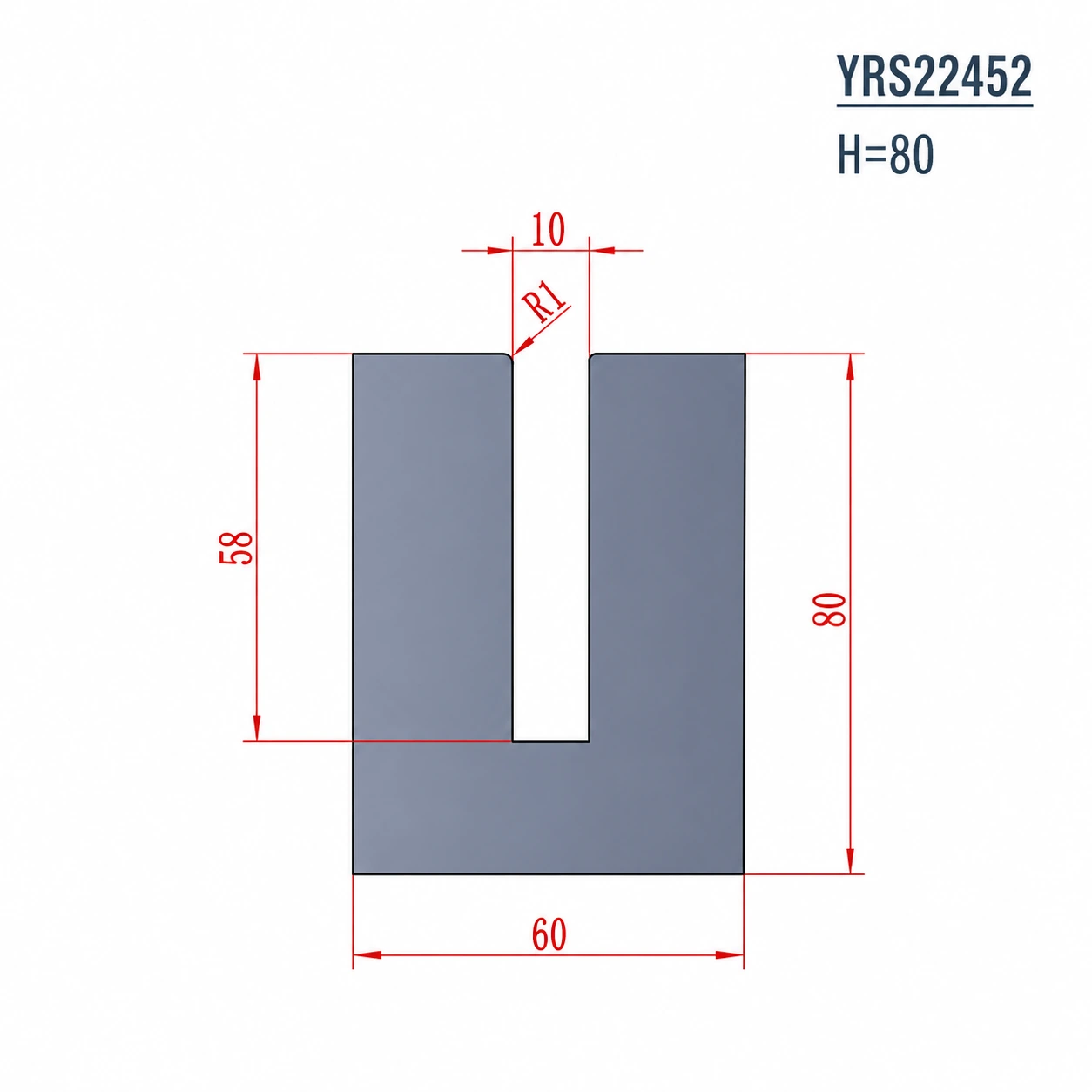

YRS22452.H=80 U10 European Press Brake Dies

YRS22452.H=80 U10 European Press Brake Dies are designed for European style press brake tooling systems and are suitable for precision sheet metal bending applications. With a height of 80mm and U10 die opening, this model is a practical solution for bending jobs that require reliable performance and stable forming results.

This press brake die is available in C45 / S45C / 1045 and 42CrMo / 42CrMo4 / 4140 materials. It features general hardness HRC48°±2, induction hardened working areas HRC54°–58°, and surface tolerance of ±0.03mm for dependable accuracy and long service life.

The maximum loading capacity is 50Ton/m. This model is available in 835mm and 805mm total lengths. Sectioned, OEM & ODM service, and customize & design service are available.

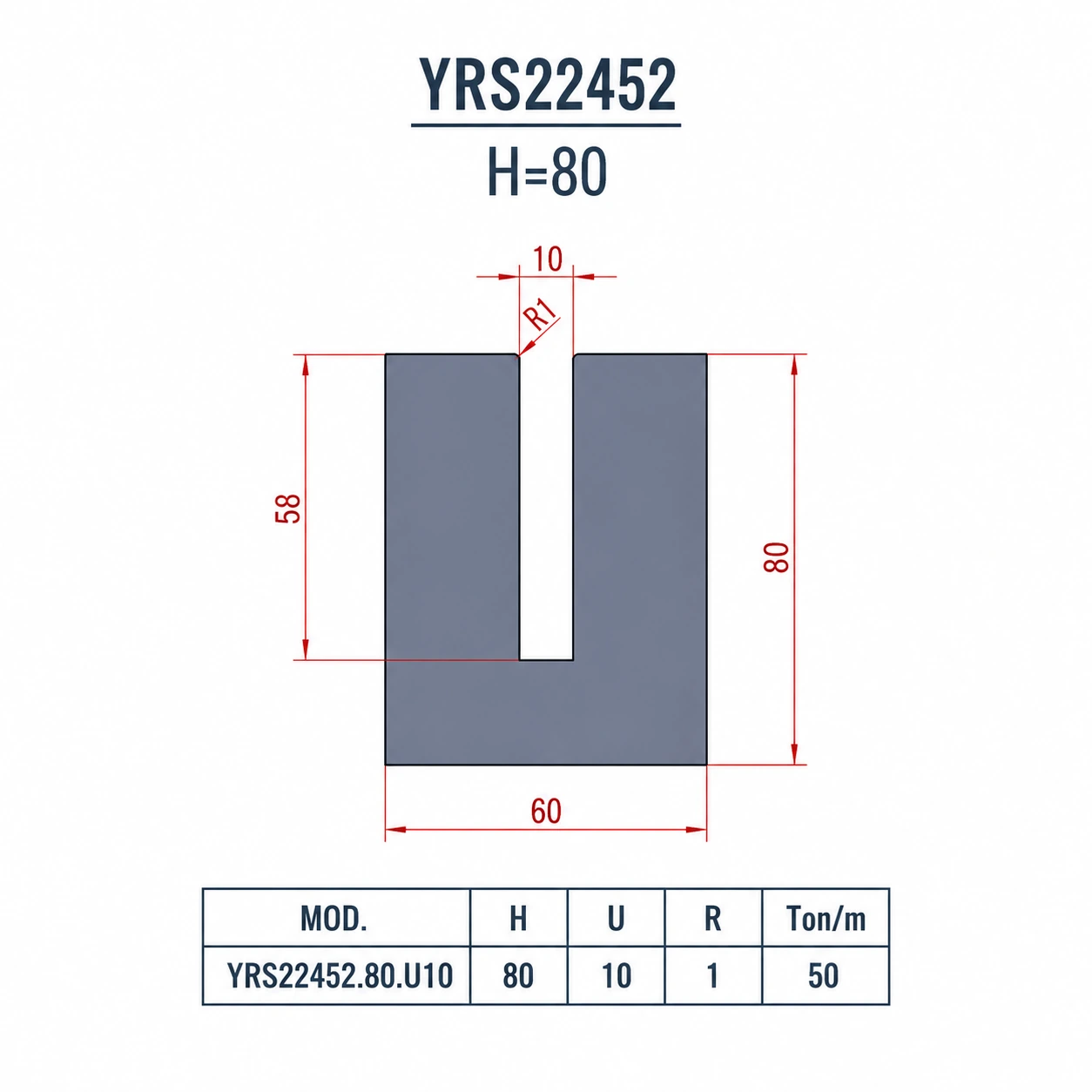

Product Specifications

Model: YRS22452.H=80
Tool System: European Style Press Brake Tooling
Product Type: Press Brake Dies / Bottom Tools / Flattening
Height: 80mm
Die Opening: U10
Maximum Loading: 50Ton/m
Material: C45=S45C=1045, 42CrMo=42CrMo4=4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Sectioned: Available
OEM & ODM Service: Available
Customize & Design Service: Available

Length and Weight

• 835mm / 27.7kg
• 805mm / 26.7kg

Available Lengths

• Total: 835mm
• Total: 805mm
