Industrial Fiber Laser Cutting Machine for Sheet Metal Fabrication
High precision, high efficiency and stable cutting performance for industrial metal fabrication.
YRS supplies fiber laser cutting machines for metal sheet cutting, machinery manufacturing, kitchenware, automotive parts, electrical cabinets and industrial production.
Available models include single working table, double working table and enclosed exchange worktable laser cutting machines with different working areas and laser power options.
Fiber Laser Cutting Machine Manufacturer
YRS industrial fiber laser cutting machines are designed for fast cutting speed, stable machine structure, good cutting accuracy and reliable long-term operation. They can cut carbon steel, stainless steel, aluminum, galvanized sheet, brass and other metal materials.
Single Working Table
Open type structure, compact design and economical choice for sheet metal processing factories.
- Suitable for small and medium factories
- Easy loading and unloading
- Stable machine frame
- Lower investment cost
Double Working Table
One table cuts while the other table is used for loading and unloading, improving production efficiency.
- Higher working efficiency
- Reduced waiting time
- Suitable for batch production
- Strong and heavy structure
Exchange Worktable
Enclosed structure with exchange platform, suitable for high-power laser cutting and industrial production.
- Better dust protection
- Higher safety design
- Fast table exchange
- Professional appearance

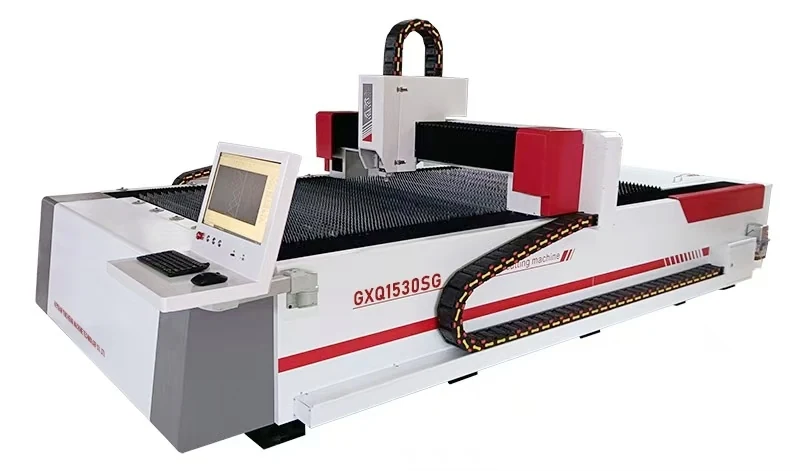

Open Type Single Working Table Laser Cutting Machine
The single working table fiber laser cutting machine is suitable for metal fabrication workshops, machinery factories, sheet metal cutting, electrical cabinet production and general industrial cutting.
- Integrated aluminum gantry
- 35 mm heavy guide rail
- Tube spill prevention groove
- Strong beam frame and plate structure
- Compact footprint and easy operation
| Model | 3015SG | 4020SG | 6515SG |
|---|---|---|---|
| Machine Type | Single working table fiber laser cutting machine | Single working table fiber laser cutting machine | Single working table fiber laser cutting machine |
| Laser Power | 3 kW | 3 kW | 6 kW / 12 kW |
| Working Area | 3010 × 1510 mm | 4010 × 2010 mm | 6510 × 1510 mm |
| Z Axis Height | 125 mm | 125 mm | 120 mm |
| Accuracy | ±0.02 mm | ±0.02 mm | ±0.03 mm |
| Free Move Speed | 90 m/min | 80 m/min | 80 m/min |
| Machine Dimension | 2350 × 4600 × 1500 mm | 2800 × 6800 × 1500 mm | 2350 × 8400 × 1600 mm |
| Auxiliary Gas Pressure | O2: 8–10 bar / N2 or Air: 10–15 bar | O2: 8–10 bar / N2 or Air: 10–15 bar | O2: 8–10 bar / N2 or Air: 10–15 bar |
| Power Supply | 380V, ±5%, 50Hz, 3 phase | 380V, ±5%, 50Hz, 3 phase | 380V, ±5%, 50Hz, 3 phase |
Note: Laser power, working area and machine configuration can be customized according to customer requirements.

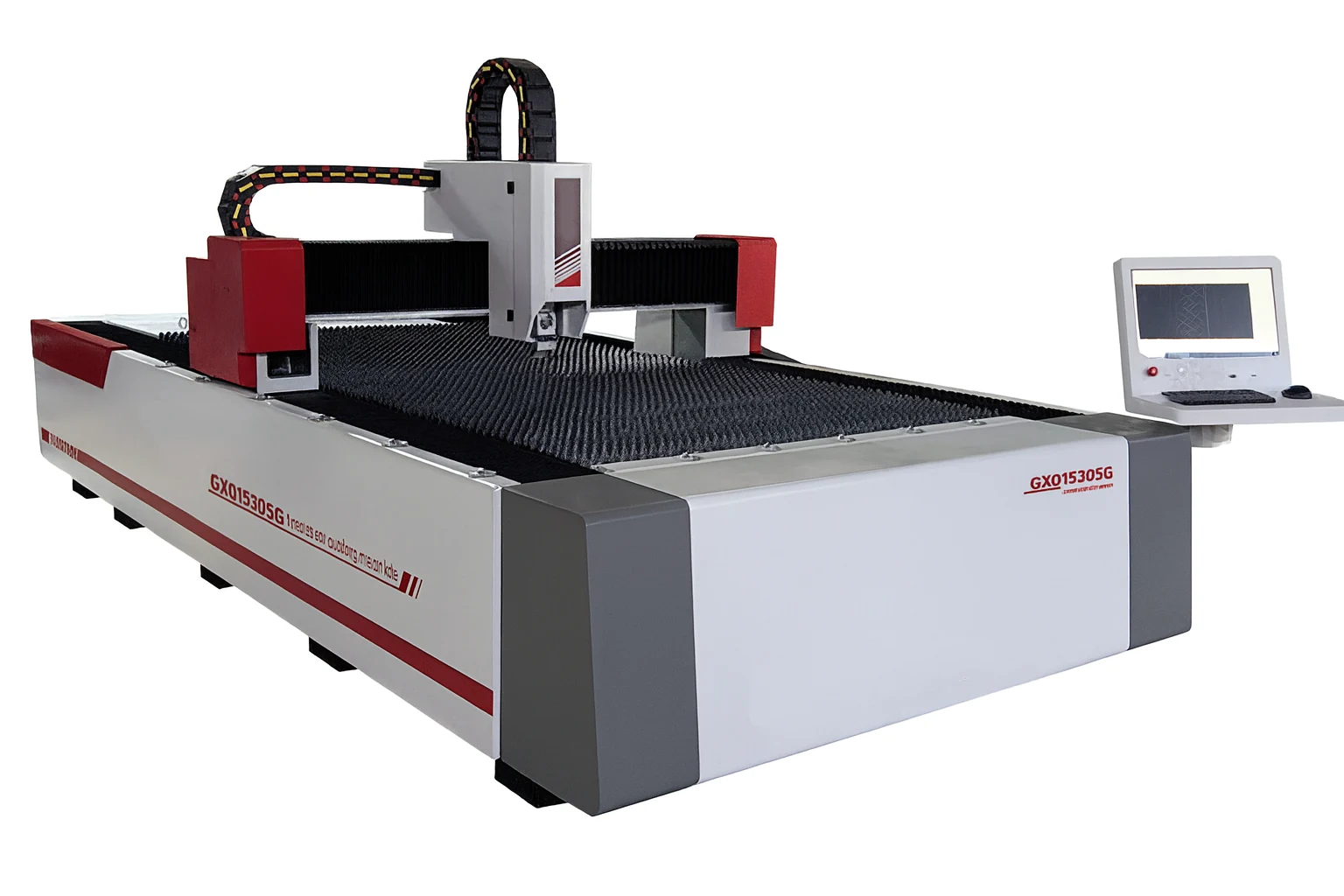

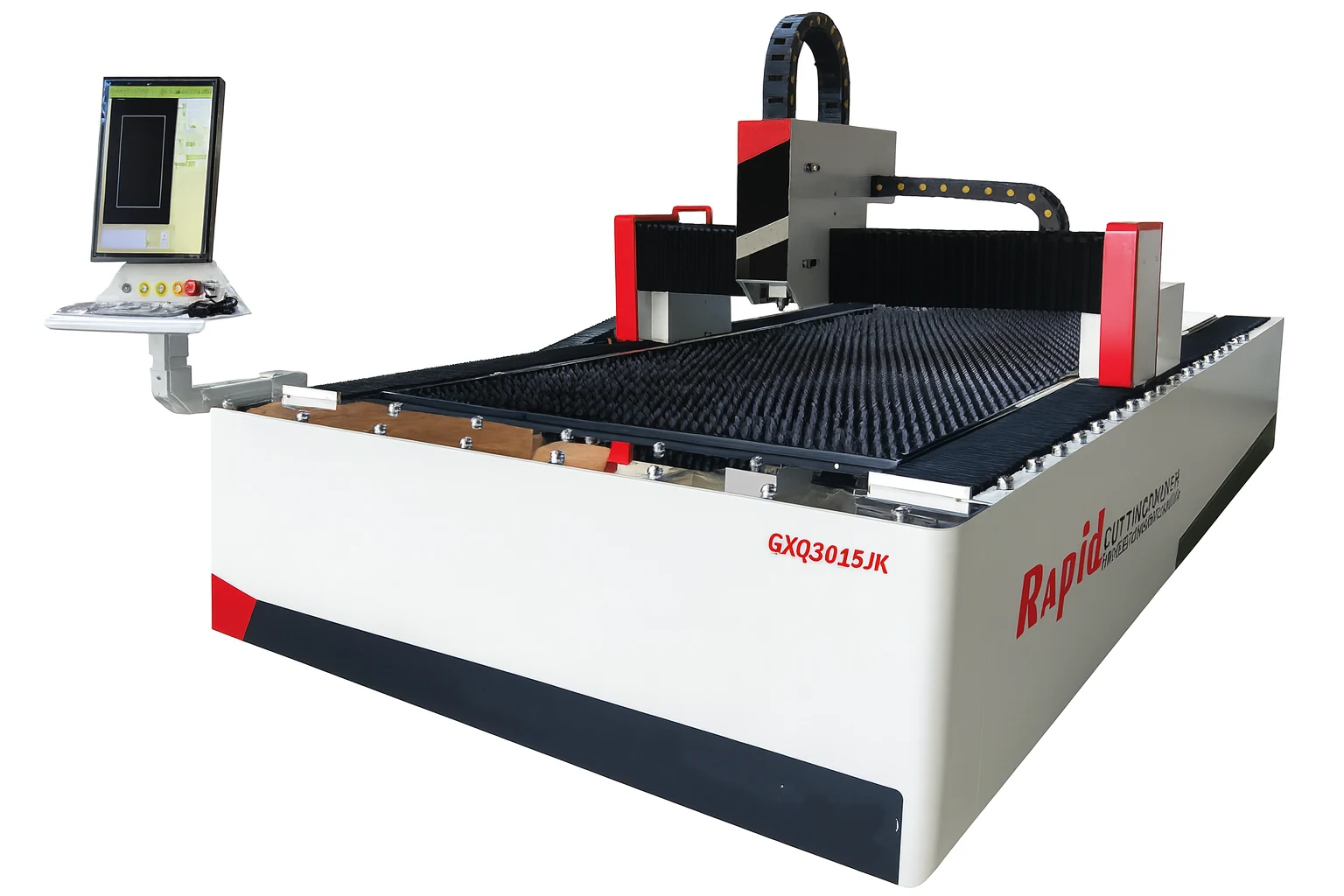

Single Working Table DG / JK Series
The 3015DG / 3015JK series is designed for customers who need a stronger open-type machine structure, higher cutting power options and flexible working table sizes.
- Strong welded frame structure
- Heavy load support structure
- High-speed motion system
- Good choice for daily industrial sheet metal cutting
| Model | 3015DG / 3015JK | 4020DG / 4020JK | 6515DG / 6515JK |
|---|---|---|---|
| Machine Type | Single working table fiber laser cutting machine | Single working table fiber laser cutting machine | Single working table fiber laser cutting machine |
| Laser Power | 3000W / 6000W | 3000W / 6000W | 3000W / 6000W |
| Working Area | 3010 × 1510 mm | 4010 × 2010 mm | 6510 × 1510 mm |
| Z Axis Height | 180 mm | 160 mm | 120 mm |
| Accuracy | ±0.02 mm | ±0.02 mm | ±0.03 mm |
| Free Move Speed | 90 m/min | 80 m/min | 80 m/min |
| Machine Dimension | 2350 × 6400 × 1500 mm | 2800 × 9500 × 1500 mm | 2350 × 8300 × 1600 mm |
| Auxiliary Gas Pressure | O2: 8–10 bar / N2 or Air: 10–15 bar | O2: 8–10 bar / N2 or Air: 10–15 bar | O2: 8–10 bar / N2 or Air: 10–15 bar |
| Power Supply | 380V, ±5%, 50Hz, 3 phase | 380V, ±5%, 50Hz, 3 phase | 380V, ±5%, 50Hz, 3 phase |

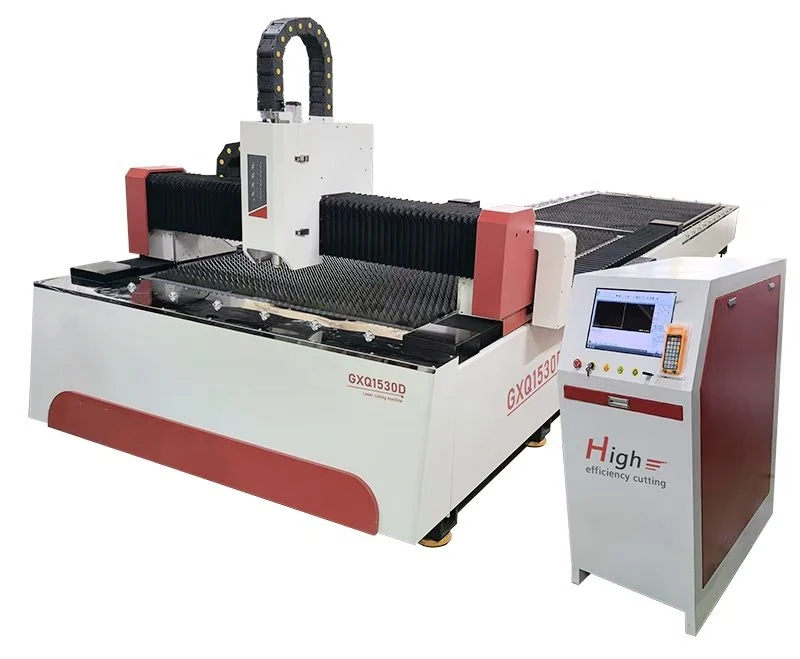

Double Working Table Fiber Laser Cutting Machine
The double working table fiber laser cutting machine improves production efficiency. While the front working table is cutting, the rear working table can be used for loading and unloading. It is suitable for factories with continuous production requirements.
- Double working table design
- Higher safety and higher efficiency
- Strong and heavy structure
- Suitable for batch sheet metal cutting
- Good for kitchenware, automotive, machinery and cabinet industries
| Model | 3015D | 4020D | 6520D |
|---|---|---|---|
| Machine Type | Double working table fiber laser cutting machine | Double working table fiber laser cutting machine | Double working table fiber laser cutting machine |
| Laser Power | 3000W | 3000W / 6000W | 3000W / 6000W / 12000W |
| Working Area | 3010 × 1510 mm | 4010 × 2010 mm | 6510 × 2010 mm |
| X/Y/Z Axis Accuracy | ±0.02 mm | ±0.02 mm | ±0.03 mm |
| Z Axis Height | 140 mm | 130 mm | 120 mm |
| Free Move Speed | 60 m/min | 60 m/min | 60 m/min |
| Machine Dimension | 2350 × 5500 × 1500 mm | 2800 × 6400 × 1500 mm | 2350 × 8400 × 1600 mm |
| Auxiliary Gas Pressure | O2: 8–10 bar / N2 or Air: 10–16 bar | O2: 8–10 bar / N2 or Air: 10–16 bar | O2: 8–10 bar / N2 or Air: 10–16 bar |
| Power Supply | 380V, ±5%, 50Hz, 3 phase | 380V, ±5%, 50Hz, 3 phase | 380V, ±5%, 50Hz, 3 phase |
Enclosed Exchange Worktable Fiber Laser Cutting Machine
The enclosed exchange worktable laser cutting machine is designed for high safety, better dust control, higher efficiency and professional industrial production. It is suitable for medium and high-power laser cutting.
- Covered machine structure for safer operation
- Exchange working table for faster loading and unloading
- Pipe-plate welded structure with annealing process
- Large gantry milling process for improved installation accuracy
- Suitable for high-speed and high-power cutting production
| Model | 3015C | 4020C | 6525C |
|---|---|---|---|
| Machine Type | Enclosed exchange worktable fiber laser cutting machine | Enclosed exchange worktable fiber laser cutting machine | Enclosed exchange worktable fiber laser cutting machine |
| Laser Power | 3000W / 6000W | 3000W / 6000W | 6000W / 12000W / 20000W |
| Working Area | 3010 × 1510 mm | 4010 × 2010 mm | 6510 × 2510 mm |
| X/Y/Z Axis Accuracy | ±0.02 mm | ±0.02 mm | ±0.03 mm |
| Z Axis Height | 120 mm | 120 mm | 120 mm |
| Free Move Speed | 90 m/min | 80 m/min | 80 m/min |
| Machine Dimension | 2500 × 8800 × 2600 mm | 2900 × 10620 × 2600 mm | 3400 × 15900 × 2600 mm |
| Auxiliary Gas Pressure | O2: 8–10 bar / N2 or Air: 10–15 bar | O2: 8–10 bar / N2 or Air: 10–15 bar | O2: 8–10 bar / N2 or Air: 10–15 bar |
| Power Supply | 380V, ±5%, 50Hz, 3 phase | 380V, ±5%, 50Hz, 3 phase | 380V, ±5%, 50Hz, 3 phase |
How to Choose the Right Laser Cutting Machine
Different machine structures are suitable for different production needs. Send us your material, cutting thickness, sheet size and daily production requirement, and we will recommend a suitable model.
| Machine Type | Best For | Main Advantage | Recommended Customer |
|---|---|---|---|
| Single Working Table | General metal sheet cutting | Economical, compact, easy to operate | Small and medium metal fabrication factories |
| Double Working Table | Continuous batch production | Loading and unloading while cutting | Factories with regular sheet metal cutting orders |
| Exchange Worktable | High-power and high-efficiency production | Enclosed safety design and fast table exchange | Professional industrial manufacturers |
Applications of Fiber Laser Cutting Machine
YRS fiber laser cutting machines are widely used in metal fabrication industries that require fast cutting speed, smooth cutting edge and accurate sheet metal processing.
Sheet Metal Fabrication
Carbon steel, stainless steel, aluminum and galvanized sheet cutting.
Kitchenware Industry
Stainless steel kitchen equipment, cabinets and commercial kitchen parts.
Automotive Parts
Metal brackets, covers, frames and structural components.
Electrical Cabinets
Control cabinets, machine cabinets and enclosure manufacturing.

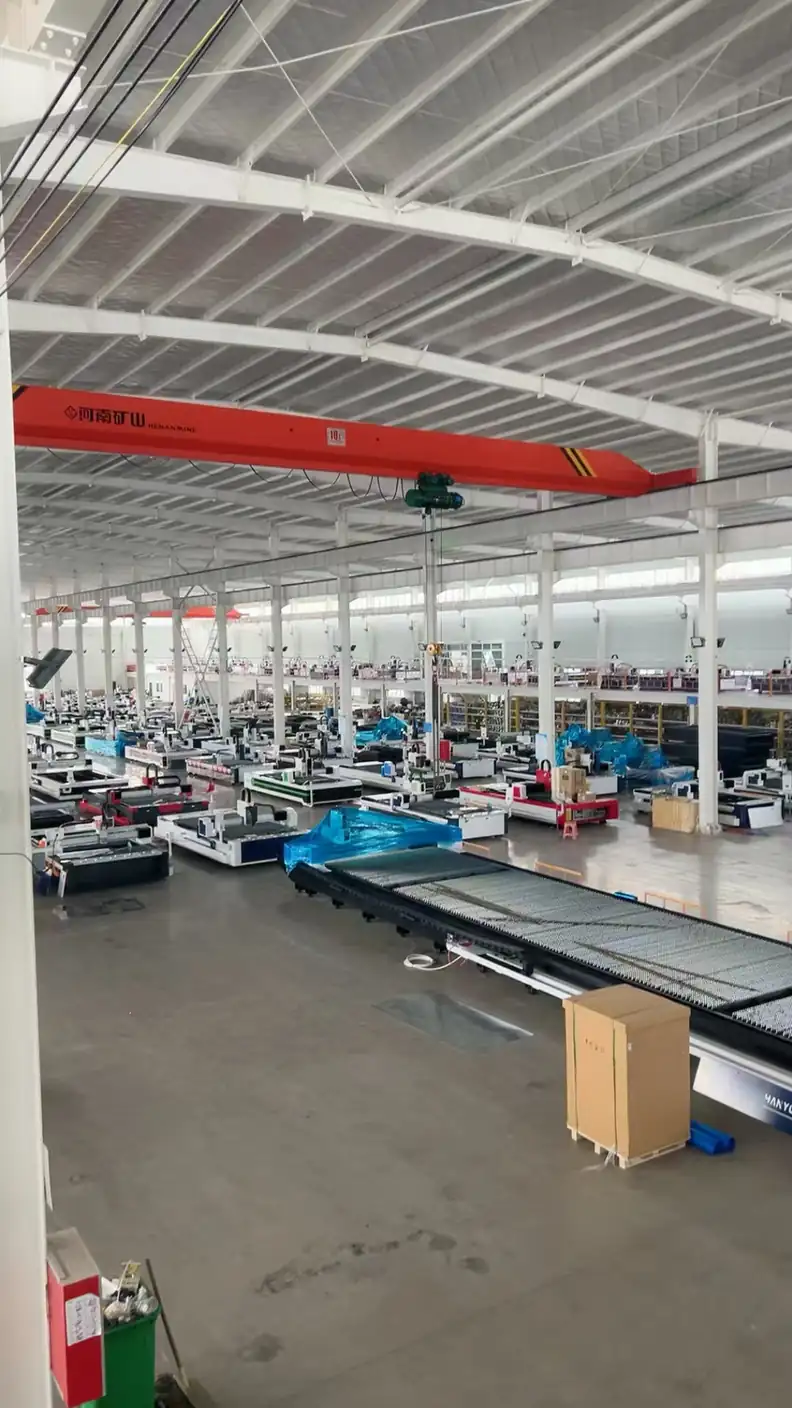

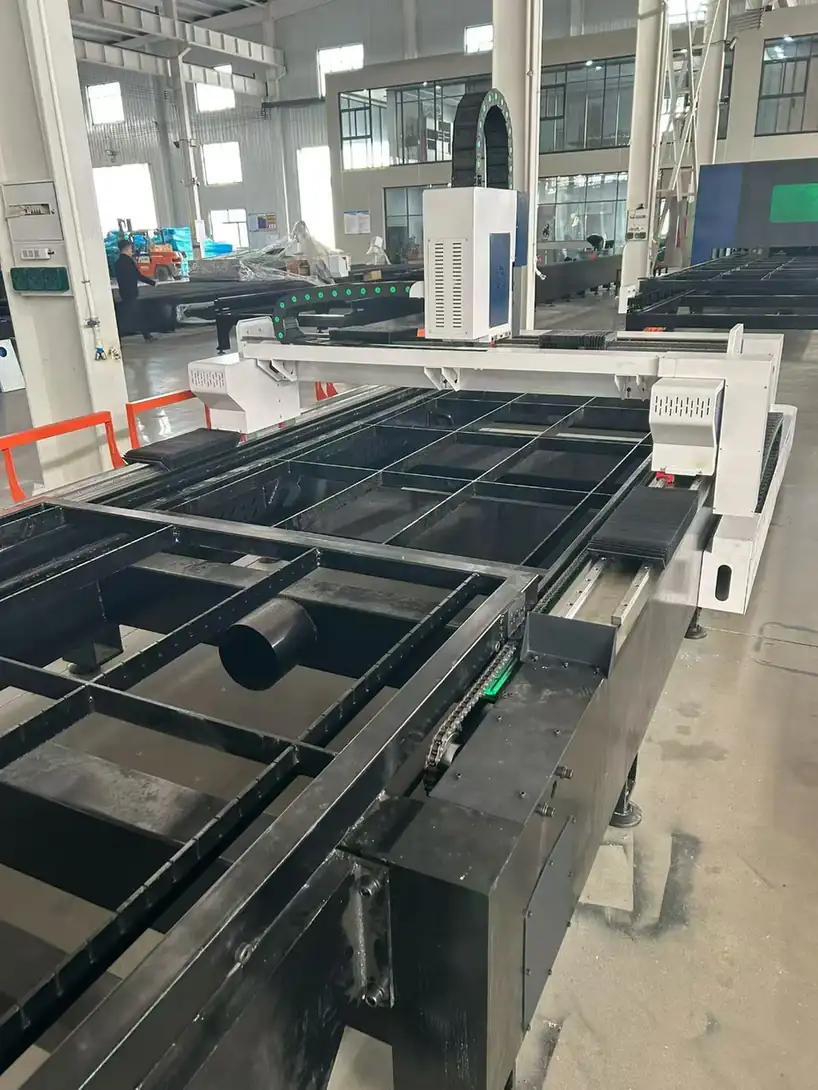

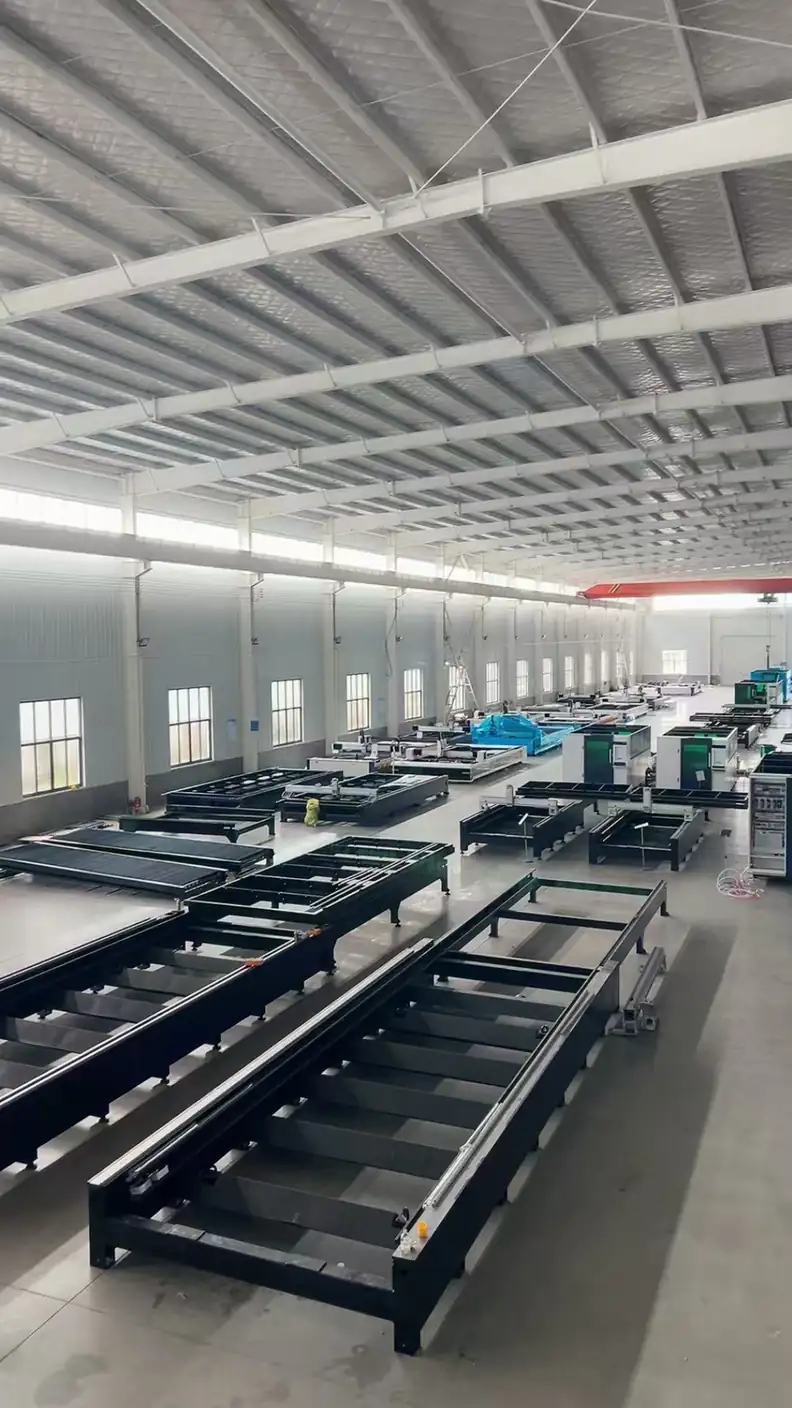

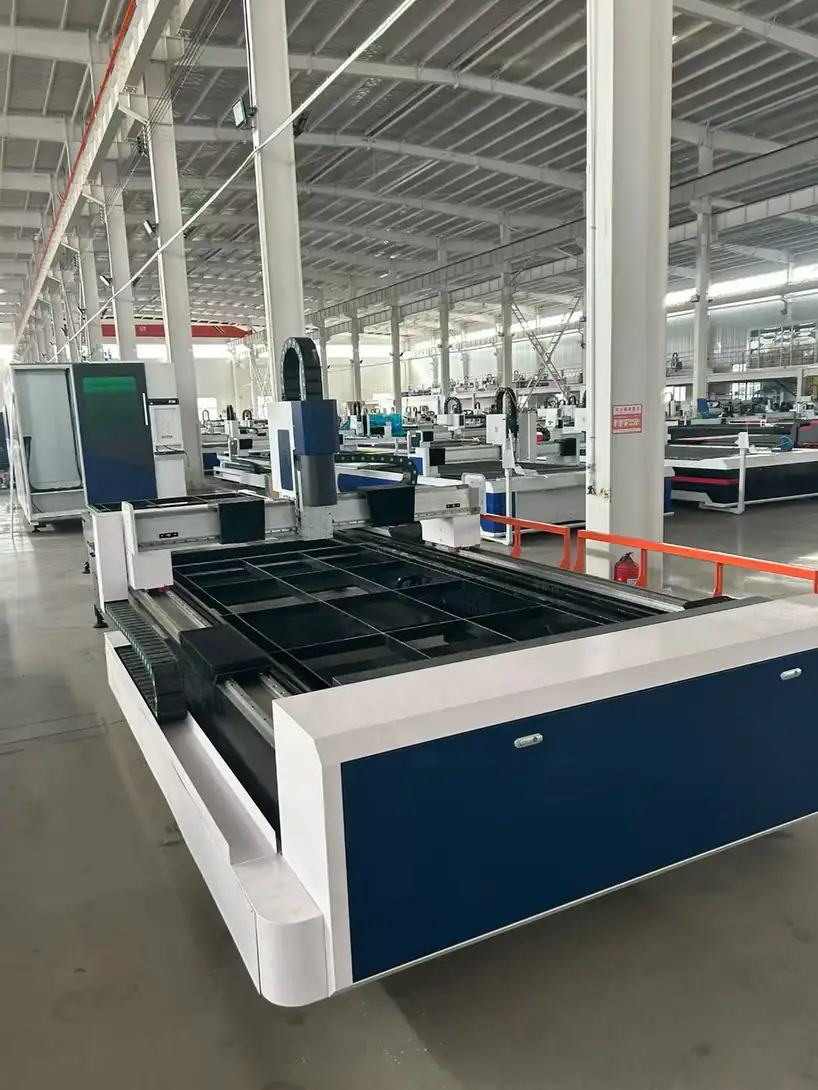

Laser Cutting Machine Factory & Production Workshop
YRS supplies industrial metal fabrication machinery including fiber laser cutting machines, press brakes, laser welding machines, shearing machines and hydraulic riveting machines.

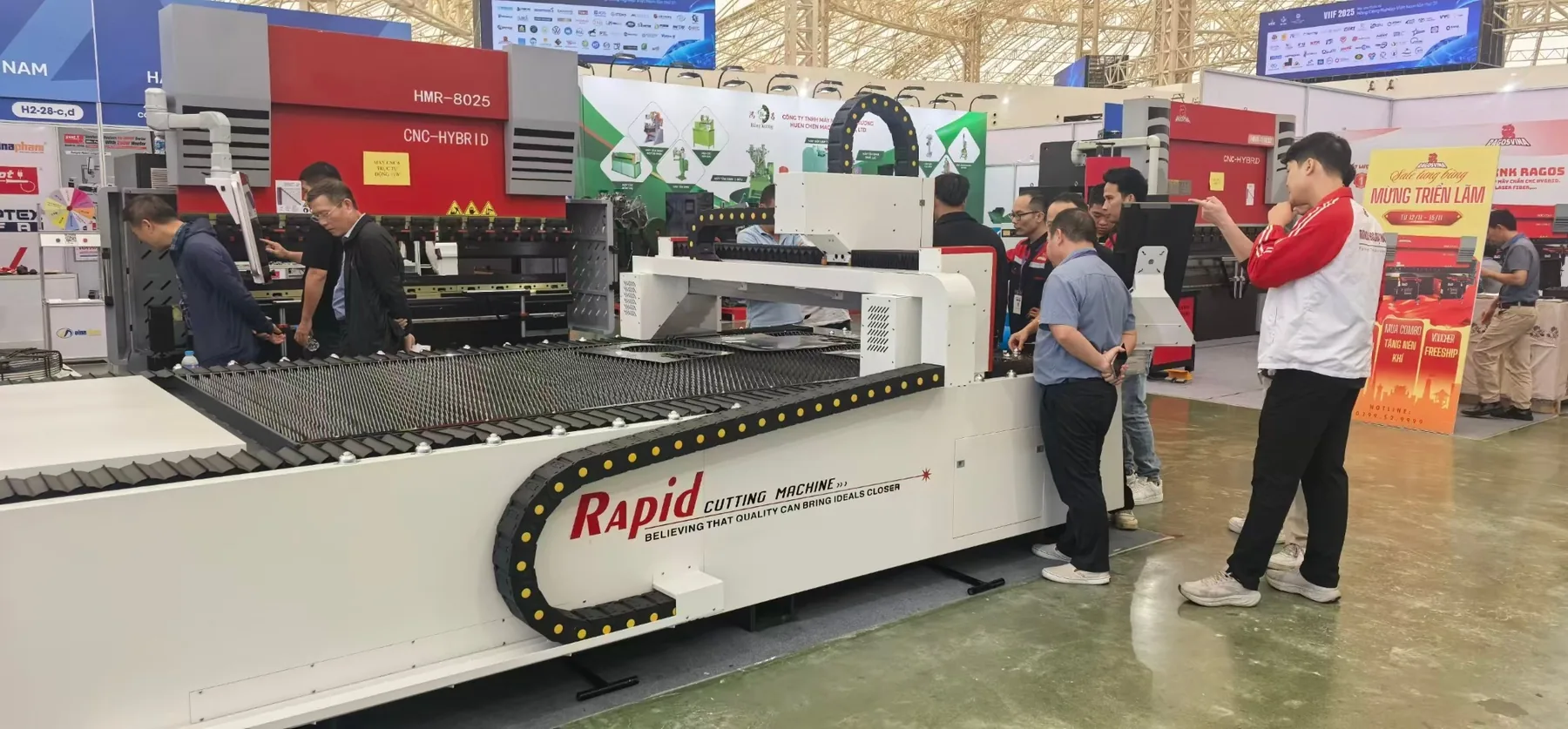

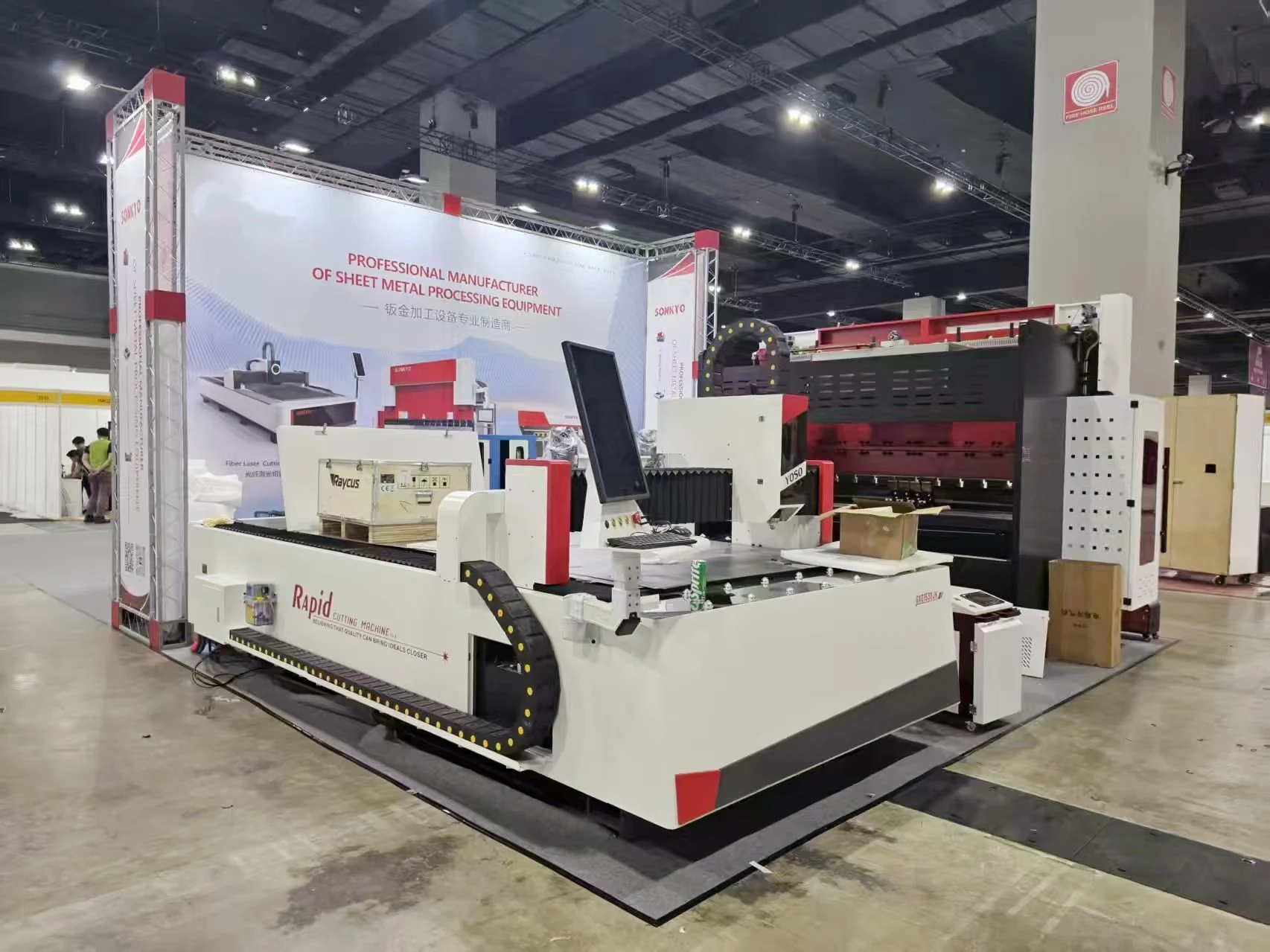

Exhibition & Customer Communication
We welcome customers, agents and distributors to contact us for machine details, technical data, quotation, catalog and cooperation opportunities.
Contact YRS for Laser Cutting Machine Quotation
Please send us your material type, cutting thickness, sheet size, laser power requirement and production plan. We will recommend a suitable fiber laser cutting machine for your factory.
