Hydraulic Riveting Machine for Sheet Metal Fastening
YRS Industrial supplies hydraulic riveting machines for installing self-clinching nuts, studs, screws, standoffs, rivet nuts, and rivet nut columns into sheet metal parts.
Hydraulic Riveting Machine

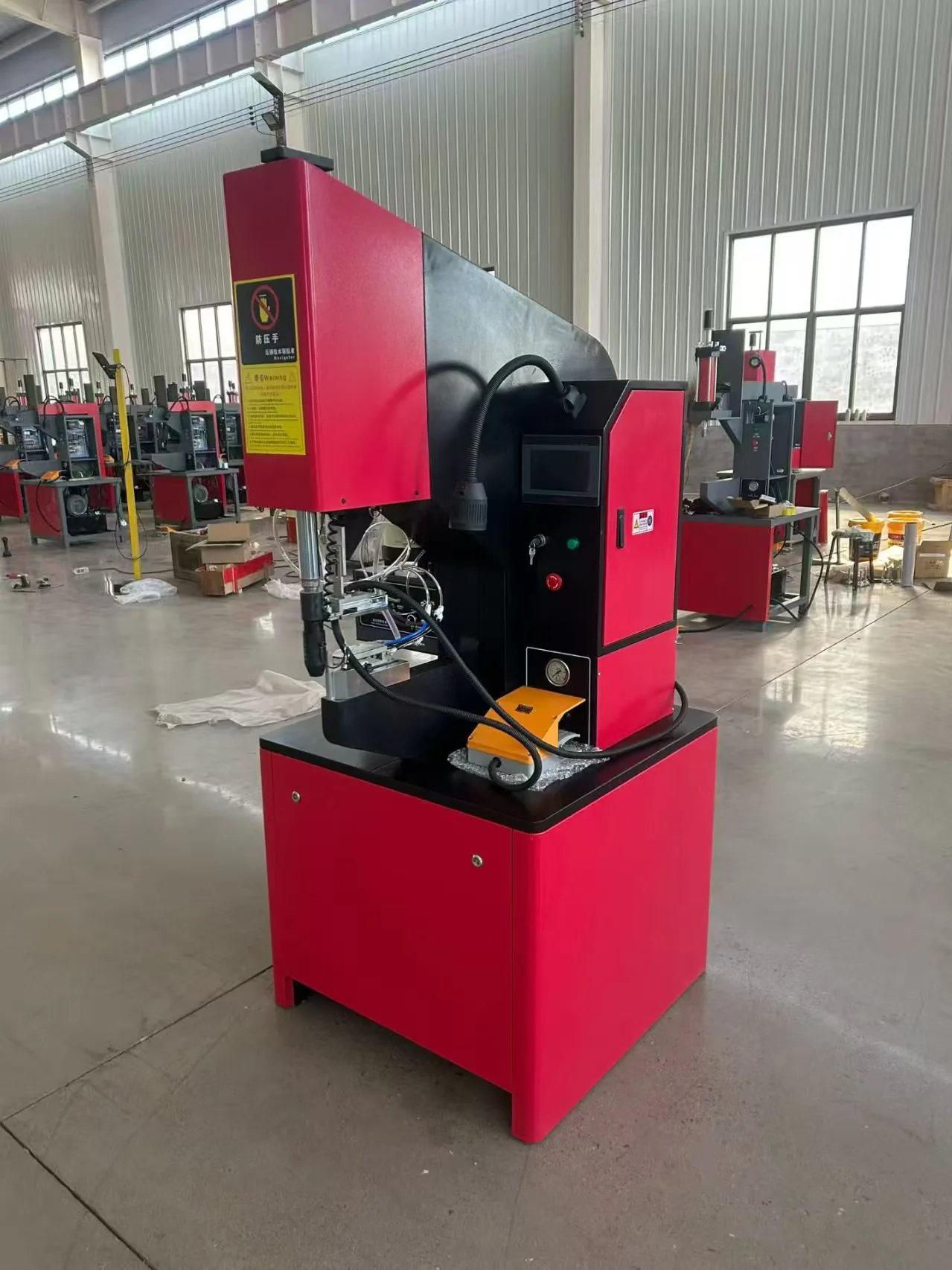

The YRS Industrial hydraulic riveting machine is designed for sheet metal fastening applications. It provides stable hydraulic pressure and easy operation for installing different self-clinching fasteners into metal sheets.
It is widely used in electrical cabinets, metal enclosures, control boxes, chassis, machinery covers, communication equipment, and precision sheet metal fabrication.
Applications
Hydraulic riveting machines are suitable for many sheet metal production industries.
Suitable Industries
- Electrical cabinet manufacturing
- Control box production
- Metal enclosure fabrication
- Sheet metal chassis production
- Machinery cover manufacturing
- Automotive sheet metal parts
- Communication equipment cabinets
- General industrial sheet metal fabrication
Applicable Fasteners
This hydraulic riveting machine can be used for different self-clinching and press-fit threaded fasteners.
Fastener Types
- Self-clinching nuts
- Self-clinching standoffs
- Self-clinching screws
- Rivet nuts
- Rivet nut columns
- Press-fit threaded fasteners
It is suitable for fastener sizes such as M3, M4, M5, M6, M8, M10, and M12, depending on the machine model and tooling configuration.
Applicable Materials
Different materials and sheet thicknesses may require different pressure settings and tooling. YRS Industrial can help recommend the suitable model according to your production requirements.
Carbon Steel
Suitable for common sheet metal fabrication, cabinets, chassis, and industrial parts.
Stainless Steel
Used for corrosion-resistant sheet metal products and precision metal enclosures.
Aluminum & Copper
Suitable for lightweight components, electrical parts, and special metal applications.
Hydraulic Riveting Machine Specifications
Compare the 818, 824, and 1018 models by pressure, throat depth, riveting capacity, power, and machine size to choose the right model for your sheet metal fastening work.
| Specification | Model 818 Standard Use | Model 824 Longer Throat Depth | Model 1018 Higher Pressure |
|---|---|---|---|
| Recommended For | Standard sheet metal riveting | Larger panels and deeper workpieces | Heavier-duty fastening applications |
| Maximum Pressure | 80 kN | 80 kN | 100 kN |
| Processing Distance / Throat Depth | 450 mm | 600 mm | 450 mm |
| Riveting Capacity | FH-M8 / S-M12 | FH-M8 / S-M12 | FH-M10 / S-M12 |
| Fuselage Structure | Steel structure, non-load-bearing type | Steel structure, non-load-bearing type | Steel structure, non-load-bearing type |
| Hand Protection | Yes | Yes | Yes |
| Motor Protection | Yes | Yes | Yes |
| Leakage Protection | Yes | Yes | Yes |
| Displacement | 15 cc | 15 cc | 15 cc |
| Oil Pump Ratio | Combined high/low pressure oil pump | Combined high/low pressure oil pump | Combined high/low pressure oil pump |
| Power | 2.2 kW / 50 Hz | 2.2 kW / 50 Hz | 3.75 kW / 50 Hz |
| Voltage | AC380V / AC220V | AC380V / AC220V | AC380V / AC220V |
| Piston Rod Stroke | 200 mm | 200 mm | 200 mm |
| Adjustable Stroke | 150 mm | 150 mm | 150 mm |
| Machine Weight | 530 kg | 650 kg | 580 kg |
| Overall Dimensions | 850 × 1100 × 2050 mm | 850 × 1350 × 2050 mm | 850 × 1100 × 2050 mm |
| Movement Speed | 100 mm/s | 100 mm/s | 85 mm/s |
| Oil Tank Capacity | 70 L | 70 L | 70 L |
Model Selection
The 818 model is suitable for standard sheet metal riveting applications and offers a 450 mm throat depth.
The 824 model has a longer 600 mm processing distance, making it suitable for larger sheet metal panels and deeper workpieces.
The 1018 model provides higher pressure at 100 kN and supports riveting capacity up to FH-M10 / S-M12, making it a good choice for heavier-duty fastening applications.
Standard Tooling
Standard tooling can be supplied for common self-clinching fasteners.
Tooling options include:
- Self-clinching nut tooling: M3 / M4 / M5 / M6 / M8
- Self-clinching standoff tooling: M3 / 3.5-M3 / M4 / M5 / M6
- Self-clinching screw tooling: M3 / M4 / M5 / M6 / M8
- Eccentric molds for nuts, standoffs, and screws
- Upper molds: D24-L90 / D18-90 / D18-25
With the correct tooling set, one machine can support many different riveting applications.
Machine Details
The machine can be configured with practical components for efficient operation, stable production, and easier fastener insertion.

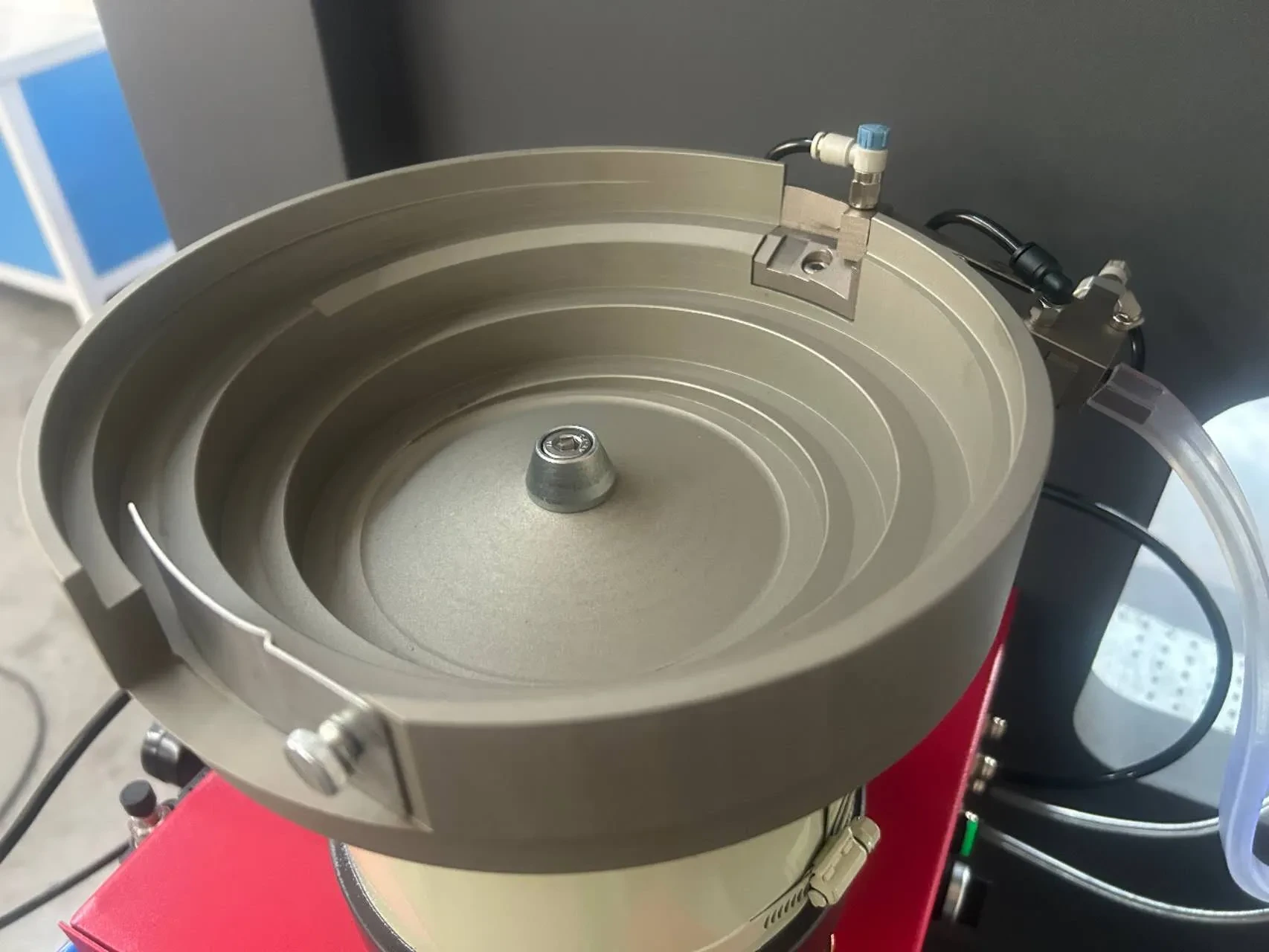

Automatic Bowl Feeder
Optional automatic feeding system can improve production efficiency for repeated fastener insertion applications.

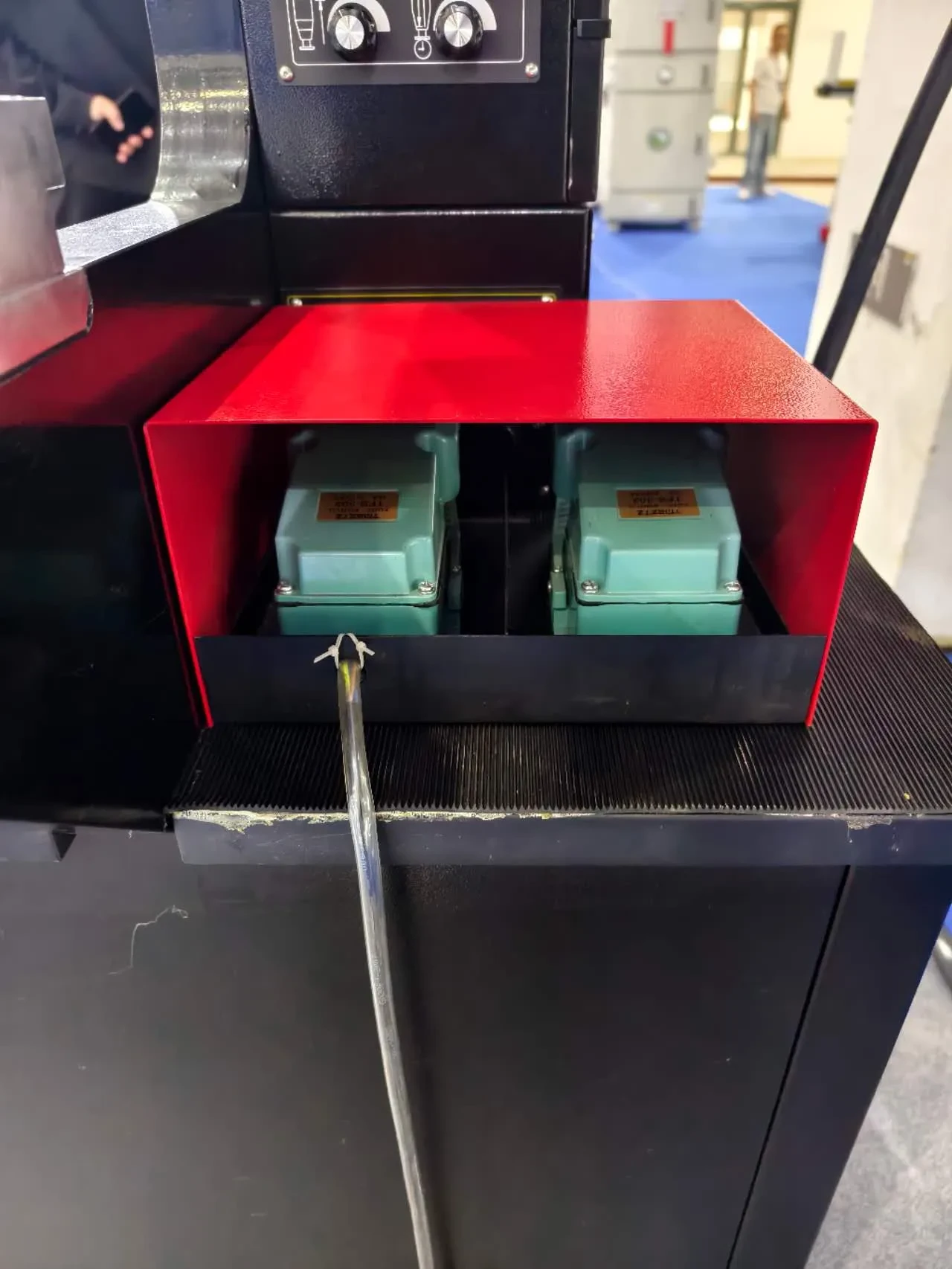

Foot Pedal Operation
Foot pedal control supports convenient machine operation and helps operators handle sheet metal parts more easily.

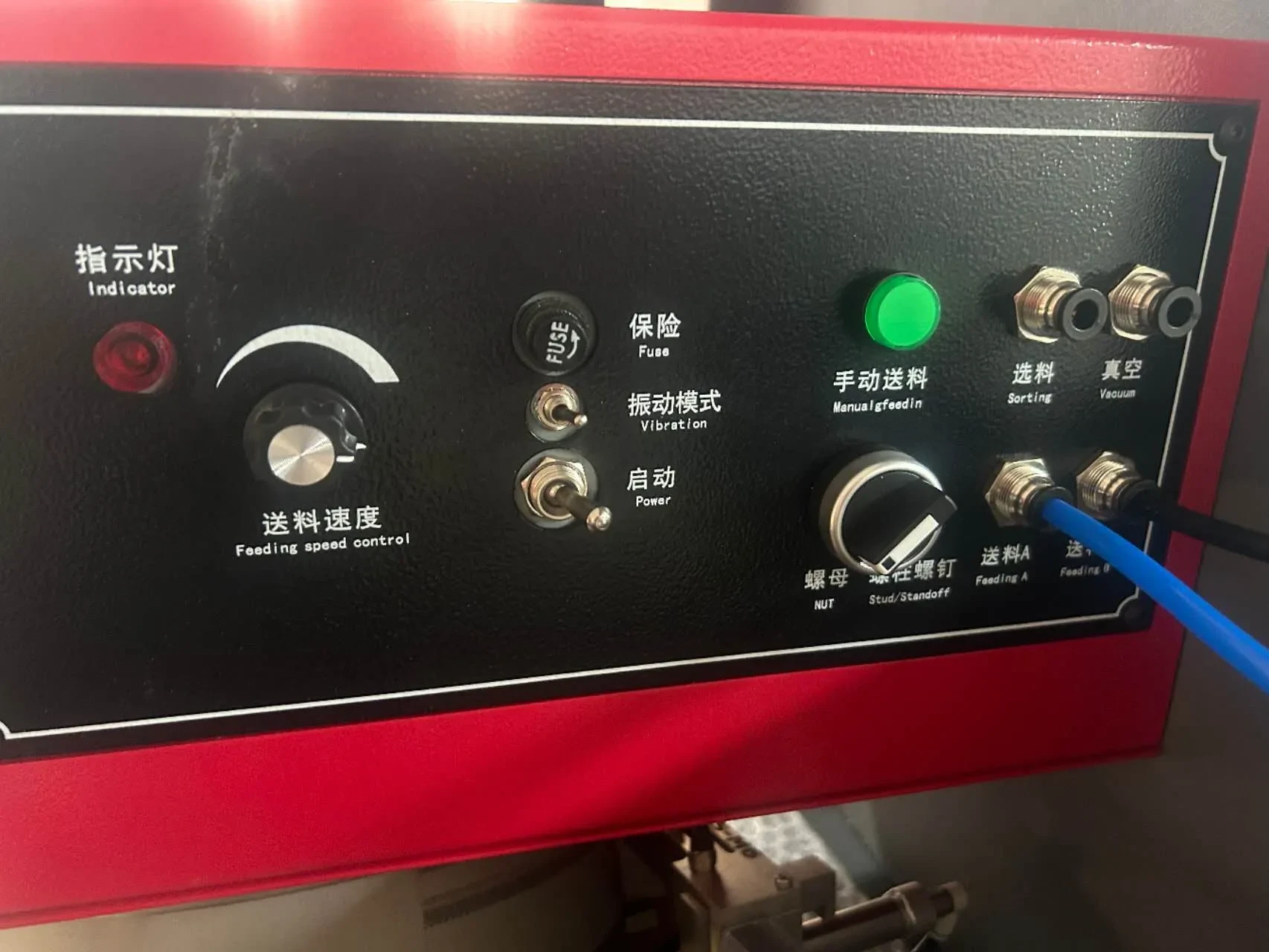

Control Panel
Simple control panel design makes the machine easy to operate, adjust, and use in daily sheet metal production.

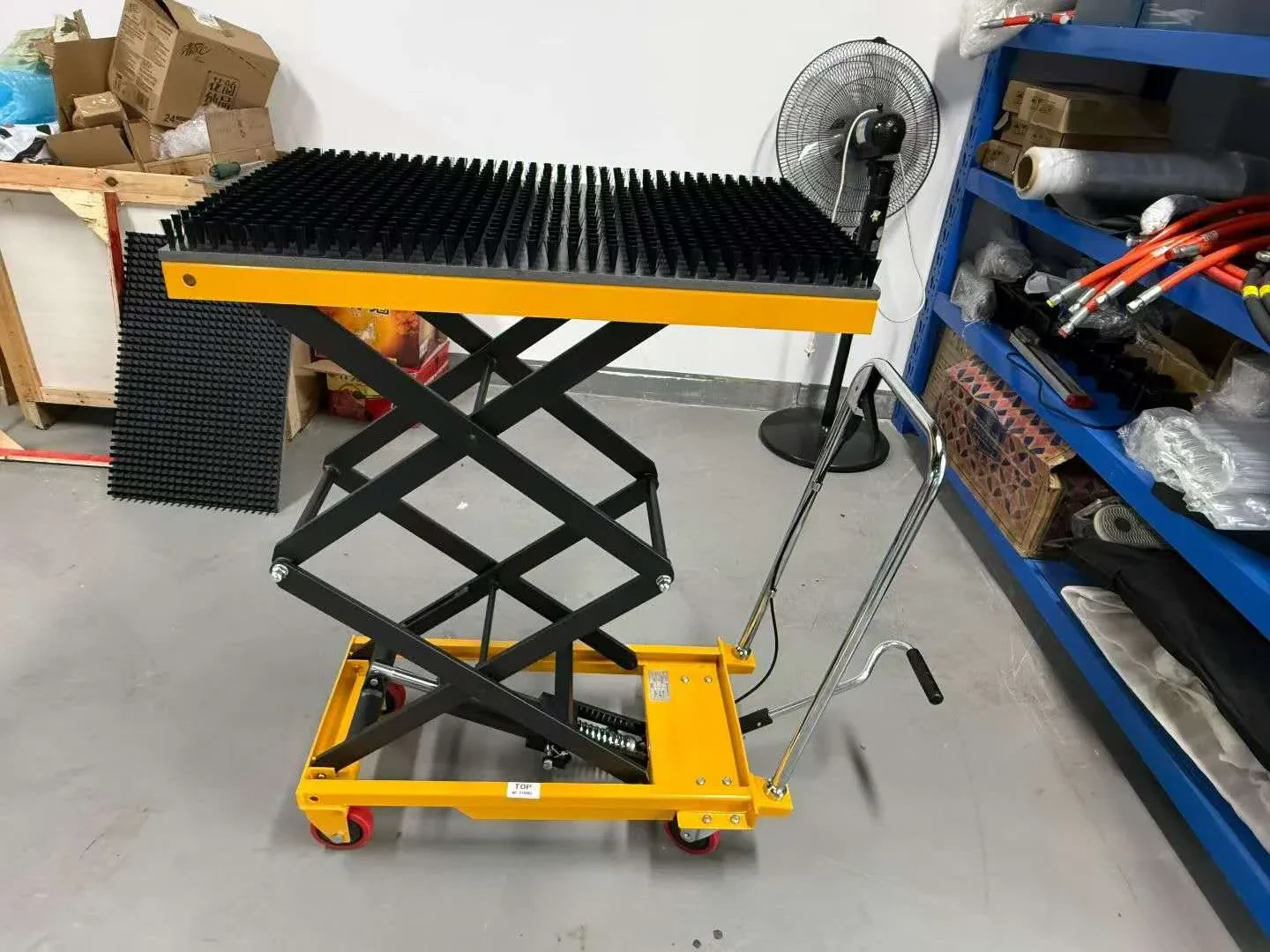

Optional Hydraulic Lift Table
A hydraulic lift table can be supplied as an optional material handling solution. It helps support larger or heavier sheet metal parts during handling, positioning, and production preparation.
This option is suitable for factories that process larger panels, heavier workpieces, or batch production parts.
Key Features
Practical structure, stable pressure, and flexible tooling make the YRS hydraulic riveting machine suitable for sheet metal fastening production.
Stable Hydraulic Pressure
Provides reliable pressing force for different self-clinching fasteners.
Easy Operation
Simple operation and adjustment for daily sheet metal fabrication work.
Multiple Fasteners
Suitable for nuts, studs, screws, standoffs, rivet nuts, and press-fit threaded fasteners.
Safety Protection
Equipped with hand protection, motor protection, and leakage protection.
Adjustable Stroke
Adjustable stroke helps match different workpieces and fastening requirements.
Export Support
Export packing, international shipping, and voltage customization support are available.
Why Choose YRS Industrial Hydraulic Riveting Machines?
YRS Industrial provides practical and cost-effective hydraulic riveting solutions for sheet metal factories. Our machines are designed for stable pressure, easy operation, suitable tooling options, and export support for international customers.
We can help customers choose the right model according to fastener type, sheet metal thickness, material, working depth, and local voltage requirements.
Lead Time
For 1 hydraulic riveting machine, we currently have stock available and can arrange shipment at any time.
For an order quantity of 10 riveting machines, the lead time is approximately 10 days.
Hydraulic Riveting Machine Working Video
Watch the hydraulic riveting machine operation video to better understand the fastener insertion process.
Hydraulic Riveting Machine Photo Gallery

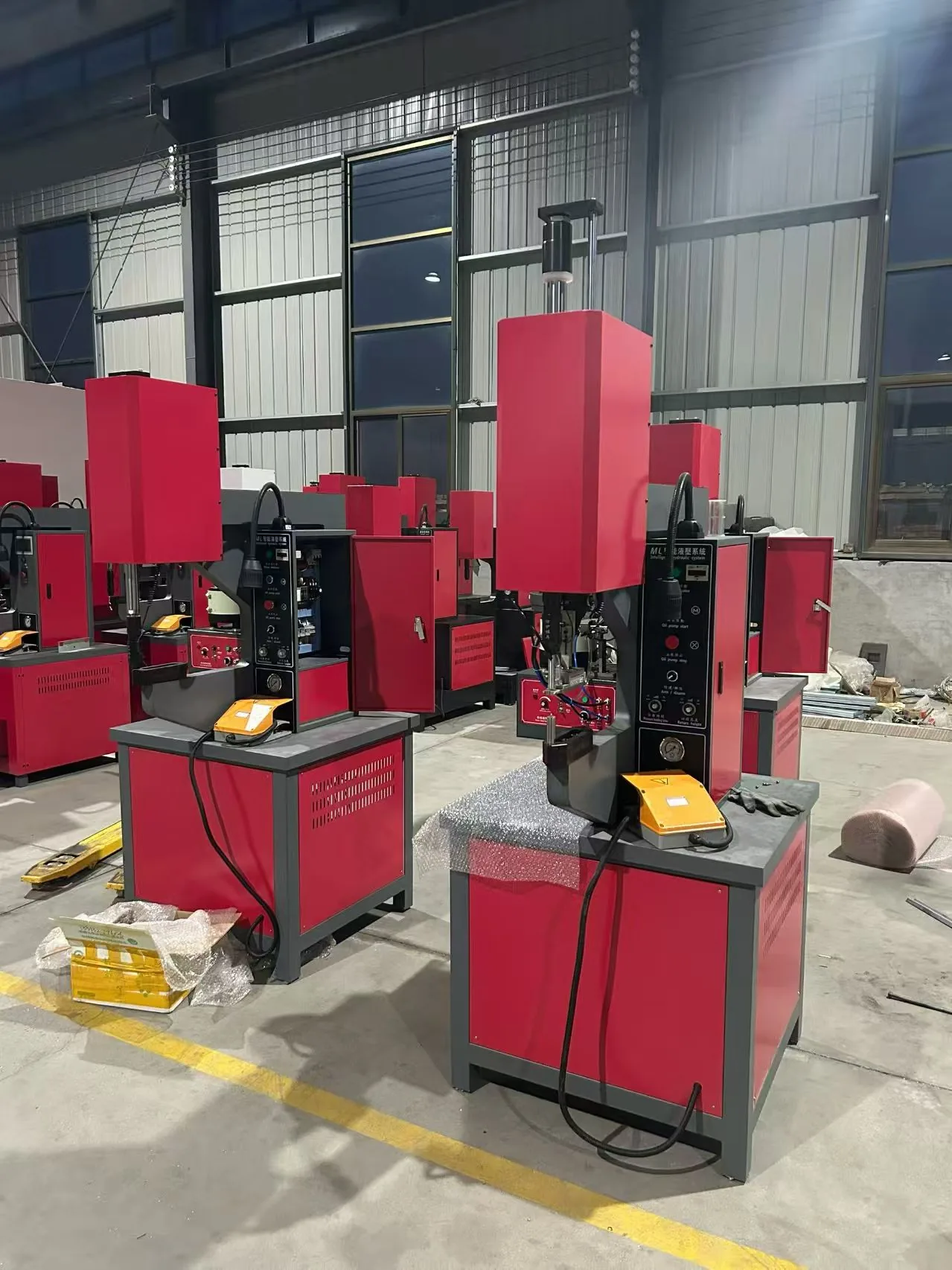

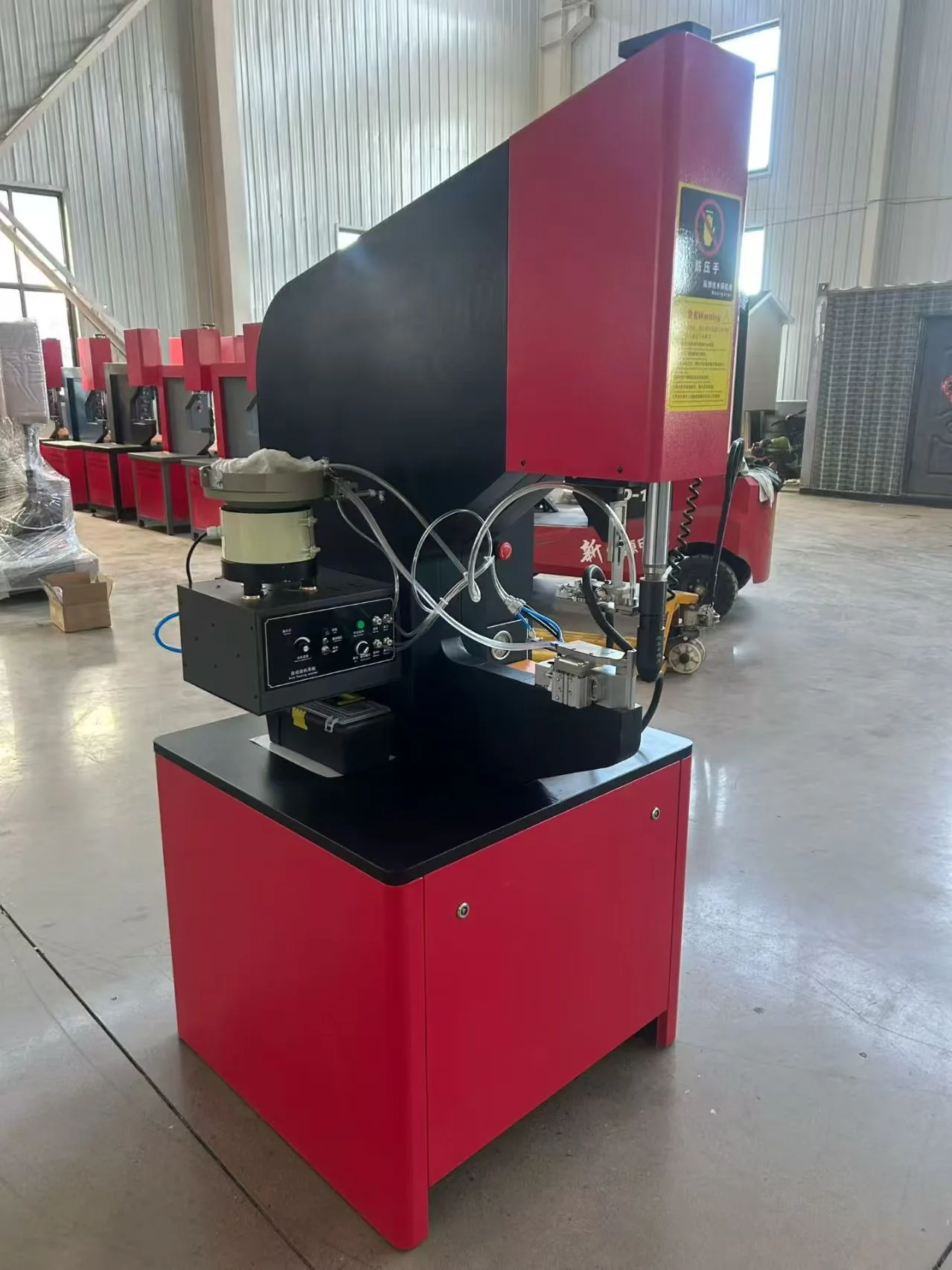

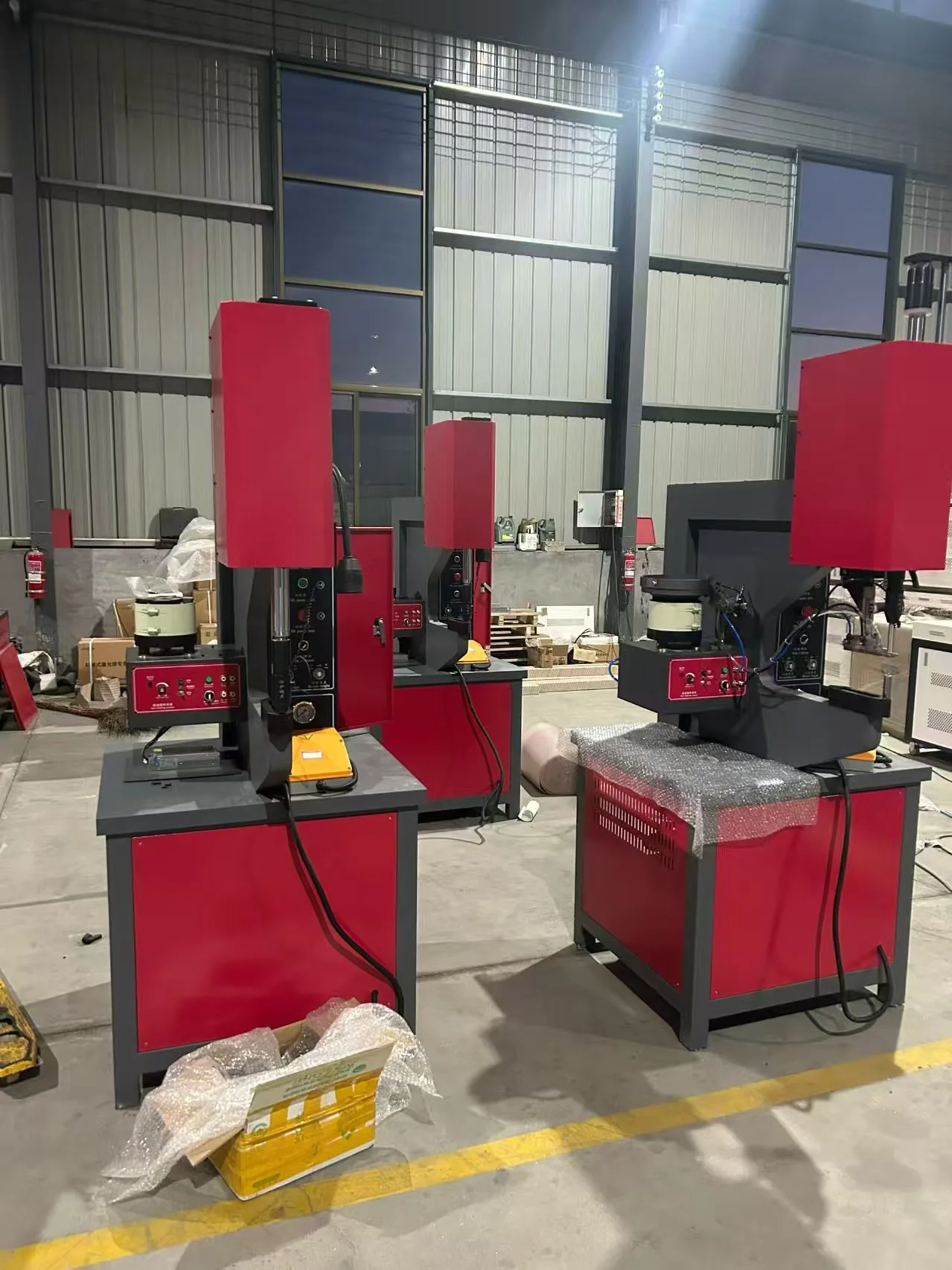

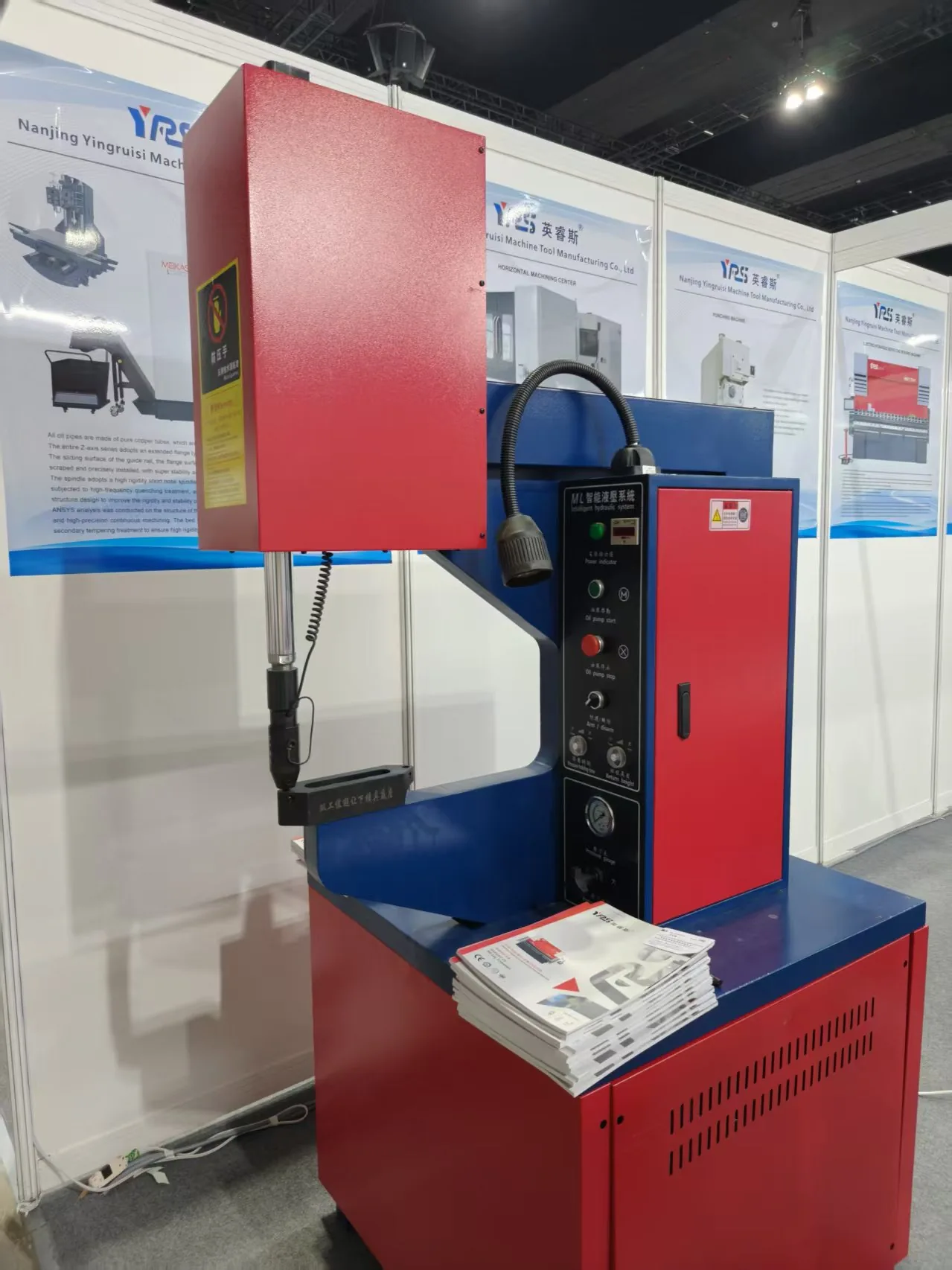

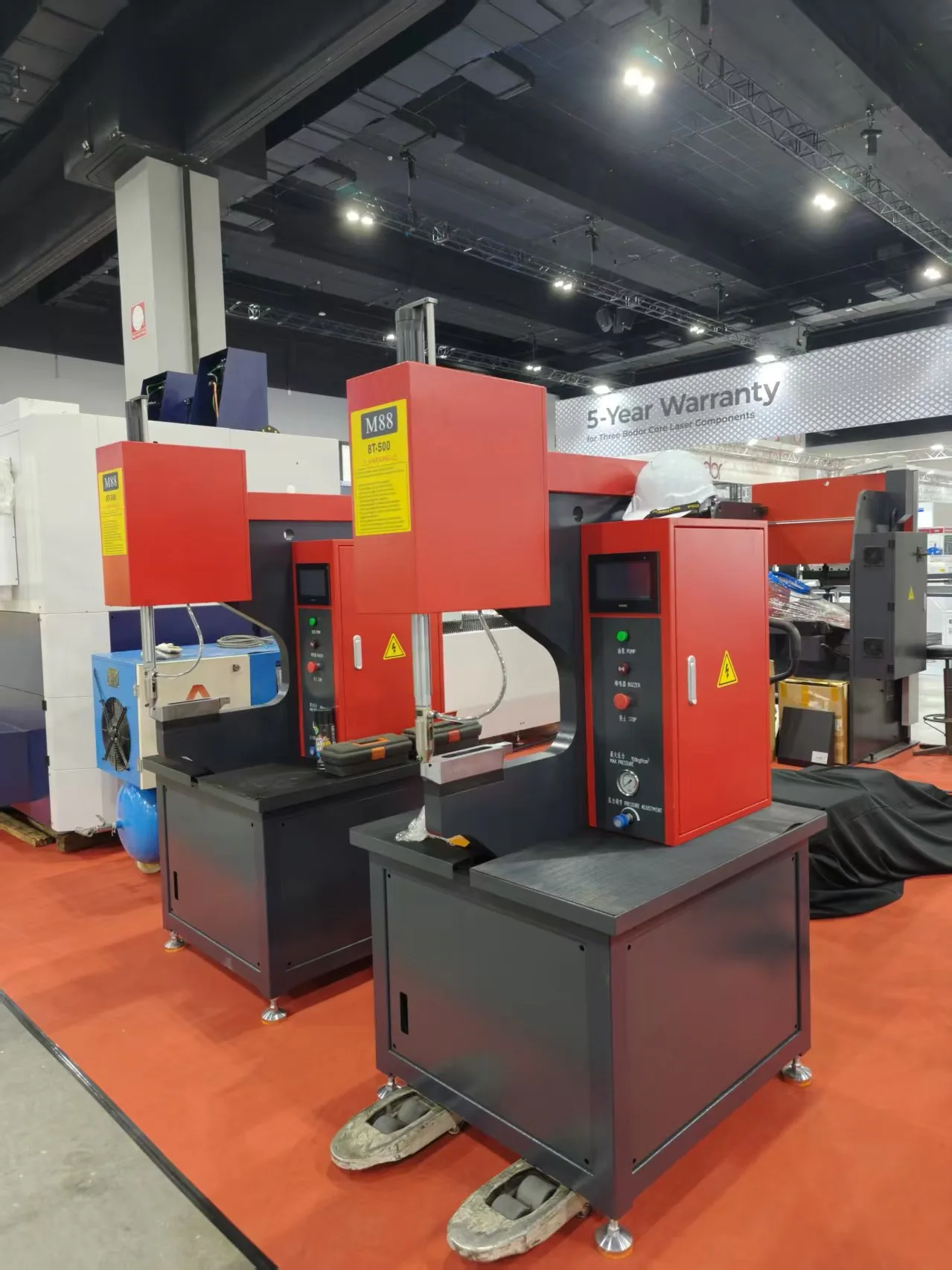

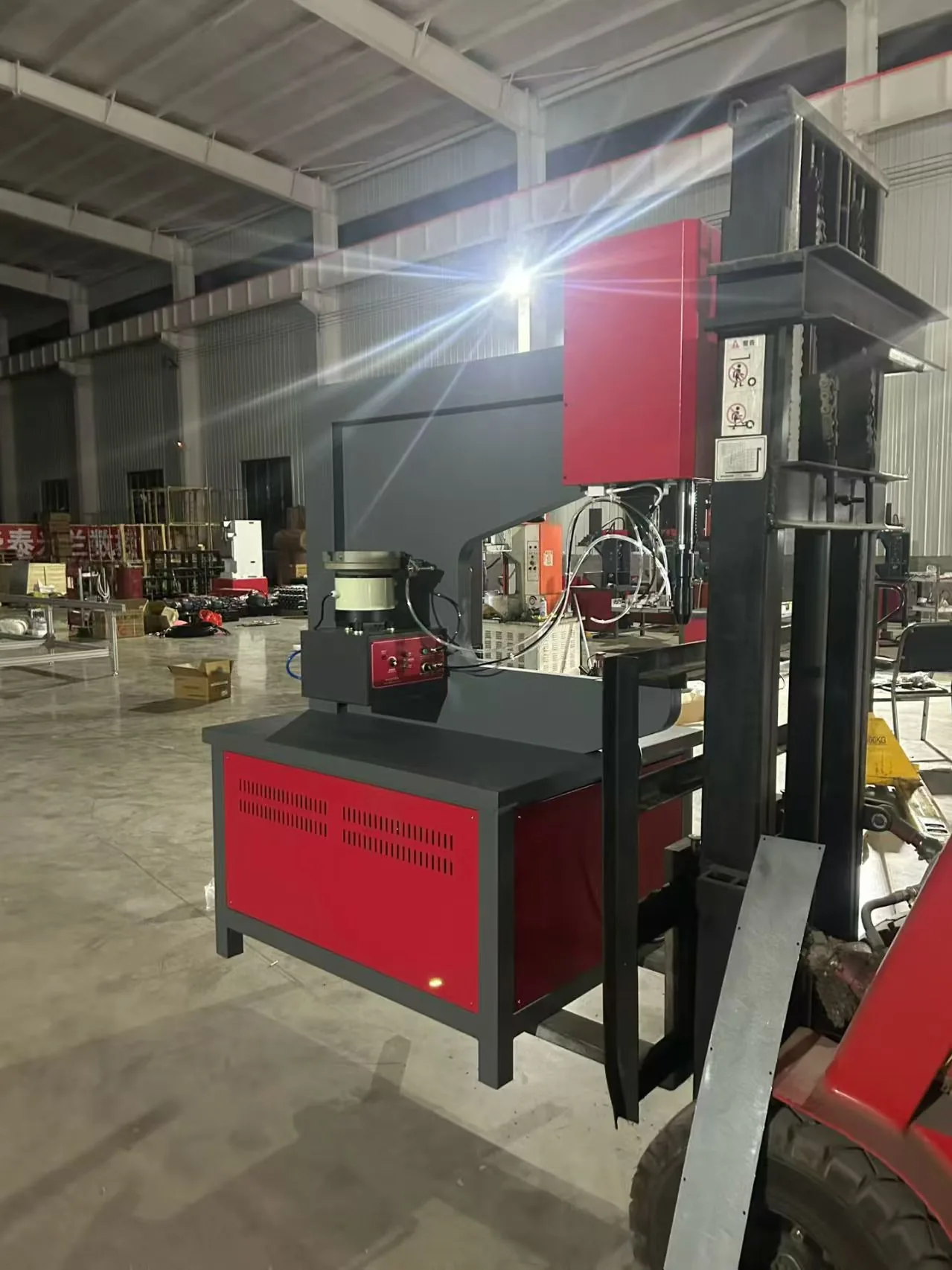

View our hydraulic riveting machine, machine structure, workshop production, side view, industrial details, and exhibition application photos.
Need a Hydraulic Riveting Machine Quotation?
Contact YRS Industrial for hydraulic riveting machine specifications, tooling options, pricing, shipping information, and export support.
