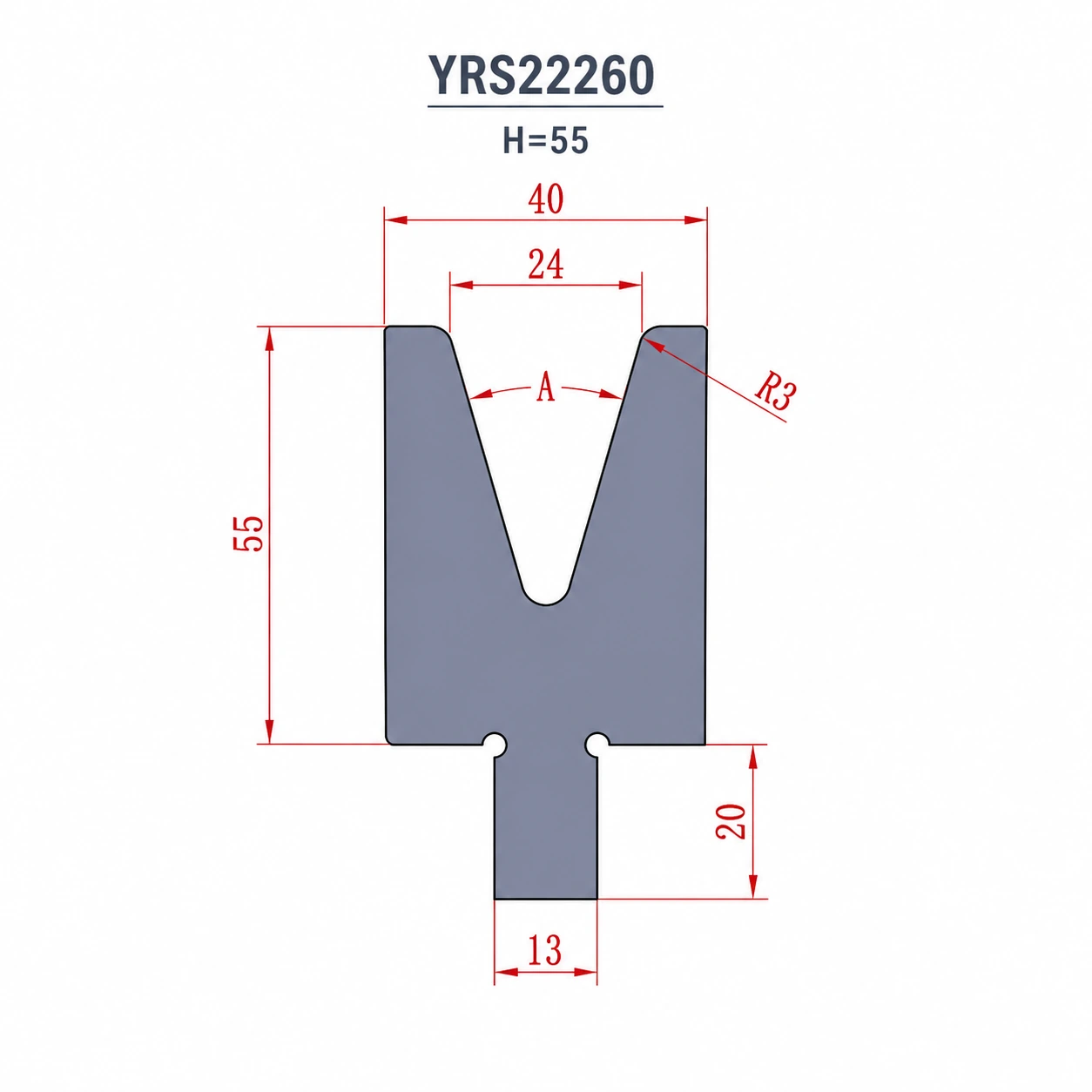

YRS22260.H=55 V24 European Press Brake Dies are designed for European style press brake tooling systems and are suitable for CNC sheet metal bending applications. With a 55mm height, V24 die opening, and 30° / 28° angle, this model is suitable for precision bending work that requires accurate forming performance.
This press brake die is made from 42CrMo / 42CrMo4 / 4140 material. It features general hardness HRC48°±2, induction hardened working areas HRC54°–58°, and surface tolerance of ±0.03mm.
The maximum loading capacity is 30Ton/m. YRS22260 is available in multiple sectional lengths for flexible tooling combinations. OEM & ODM service and customize & design service are available.

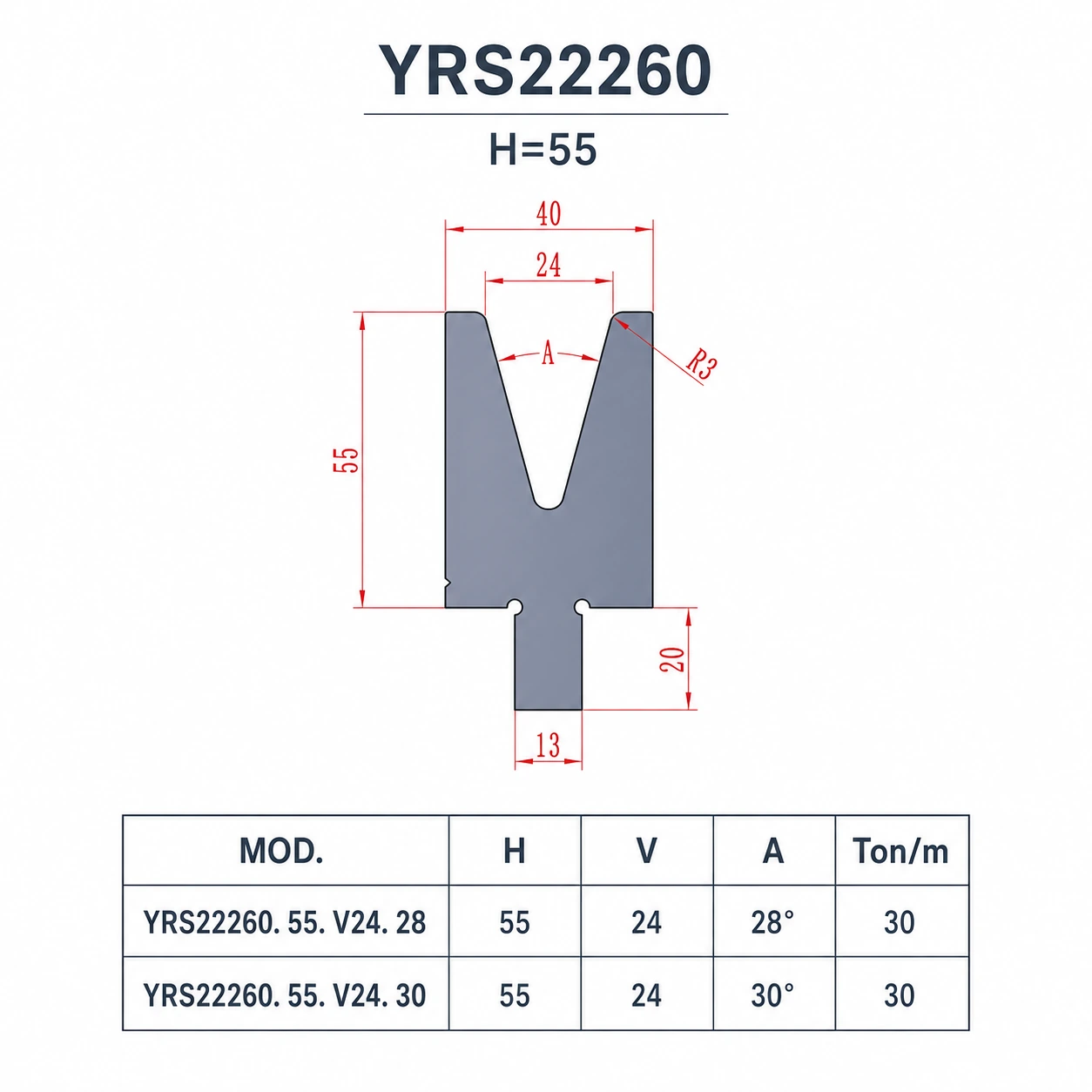

Product Specifications
Model: YRS22260.H=55
Tool System: European Style Press Brake Tooling
Product Type: Press Brake Dies / Bottom Tools / 1V Insert
Height: 55mm
Die Opening: V24
Angle: 30°, 28°
Maximum Loading: 30Ton/m
Material: 42CrMo=42CrMo4=4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Sectioned: Available
OEM & ODM Service: Available
Customize & Design Service: Available
Length and Weight
835mm / 12.7kg
805mm / 12.2kg
515mm / 7.8kg
415mm / 6.3kg
Available Sections
Total: 835mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 400
Total: 805mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 370
Total: 515mm, Available sections: 10, 15, 20, 40, 50, 100, 280
Total: 415mm
