YRS22254.H=65 V80 A=88°,85° European Press Brake Dies

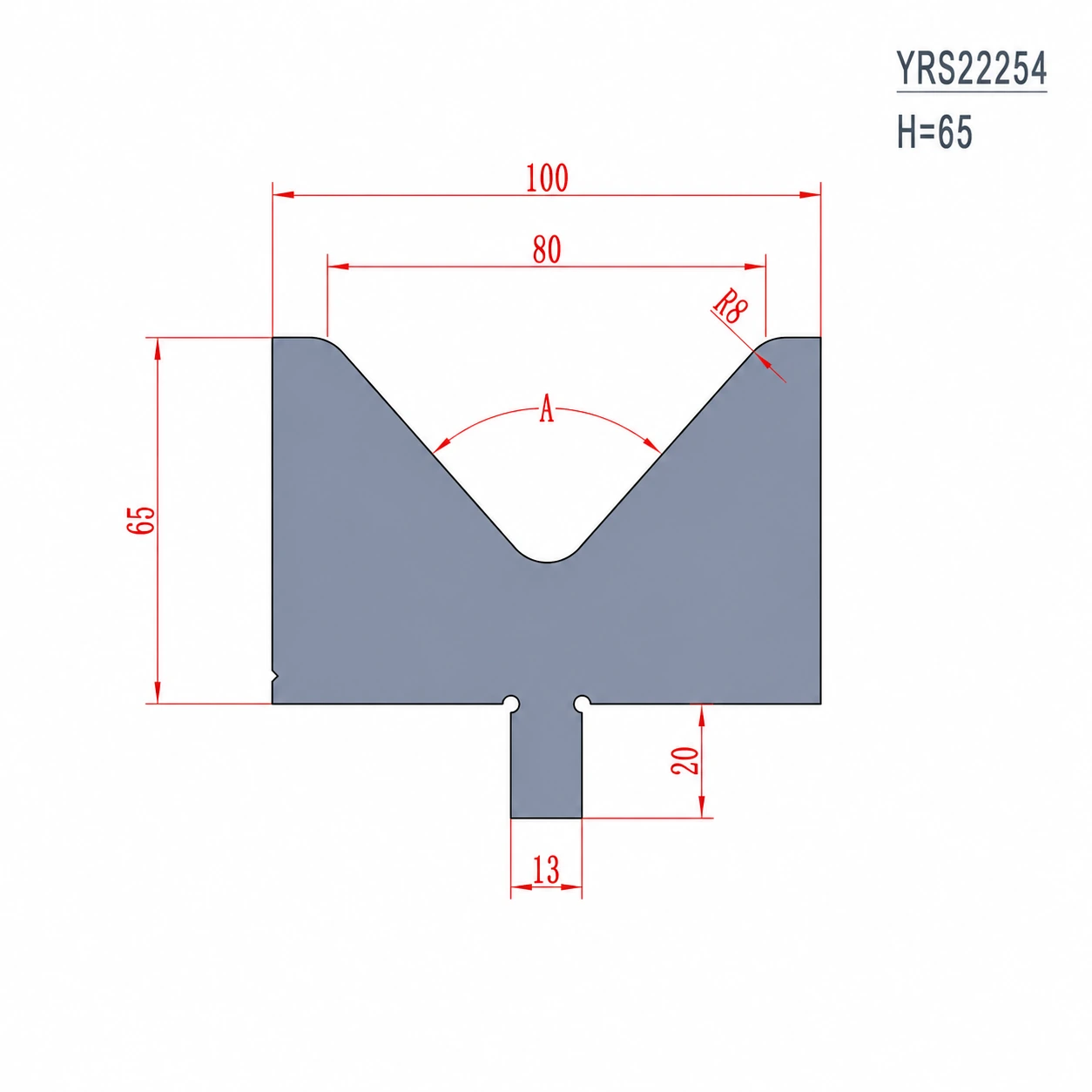

YRS22254.H=65 V80 European Press Brake Dies are designed for European style press brake tooling systems and are suitable for CNC sheet metal bending applications. With a 65mm height, V80 die opening, and 88° / 85° angle, this model is suitable for bending work that requires a wider V opening and stable forming performance.

This press brake die is available in C45 / S45C / 1045 and 42CrMo / 42CrMo4 / 4140 material options. It features general hardness HRC48°±2, induction hardened working areas HRC54°–58°, and surface tolerance of ±0.03mm.

The maximum loading capacity is 100Ton/m. YRS22254 is available in multiple sectional lengths for flexible tooling combinations. OEM & ODM service and customize & design service are available.

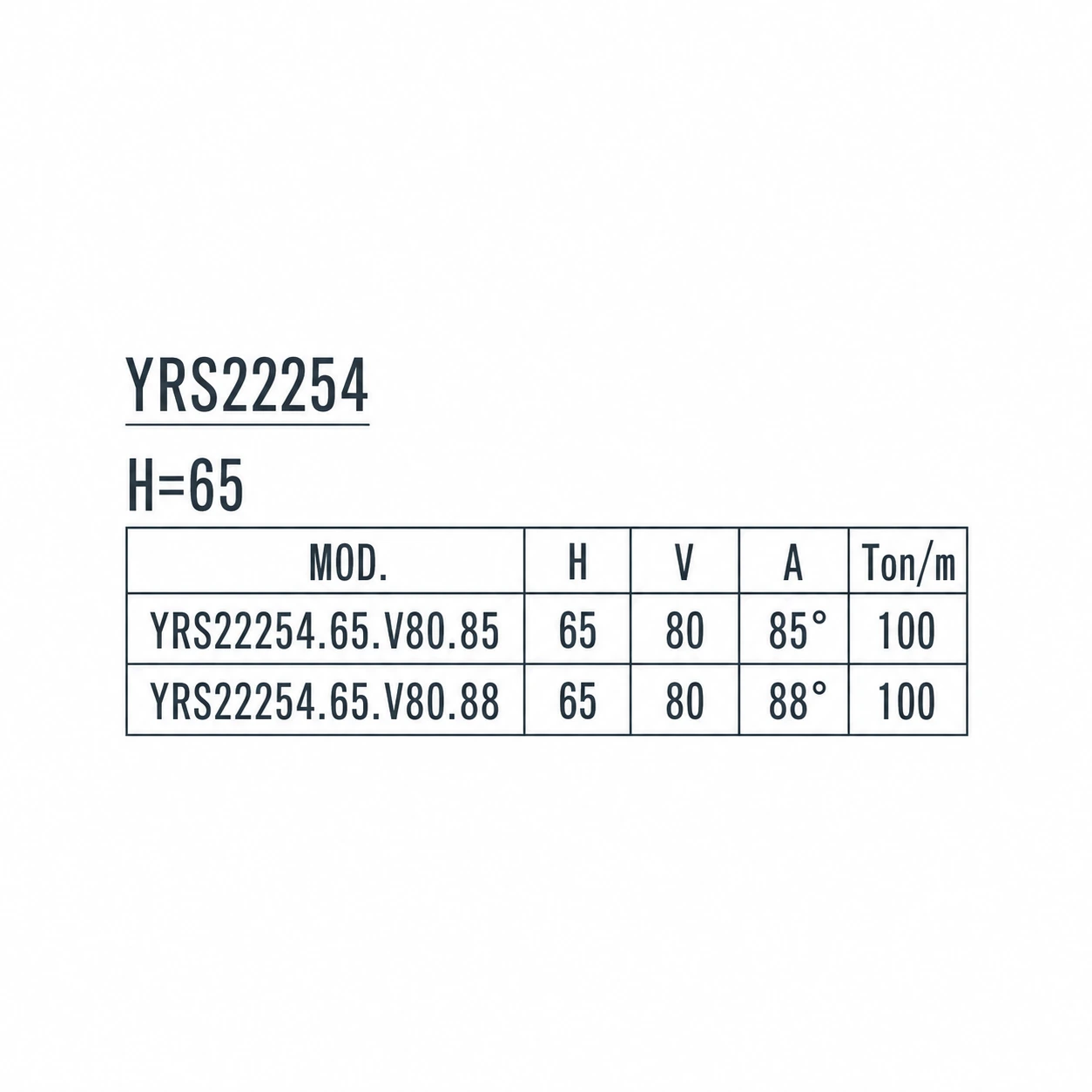

Product Specifications

Model: YRS22254.H=65
Tool System: European Style Press Brake Tooling
Product Type: Press Brake Dies / Bottom Tools / 1V Insert
Height: 65mm
Die Opening: V80
Angle: 88°, 85°
Maximum Loading: 100Ton/m
Material: C45=S45C=1045, 42CrMo=42CrMo4=4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Sectioned: Available
OEM & ODM Service: Available
Customize & Design Service: Available

Length and Weight

835mm / 32.9kg
805mm / 31.7kg
515mm / 20.3kg
415mm / 16.3kg

Available Sections

Total: 835mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 400
Total: 805mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 370
Total: 515mm, Available sections: 10, 15, 20, 40, 50, 100, 280
Total: 415mm
