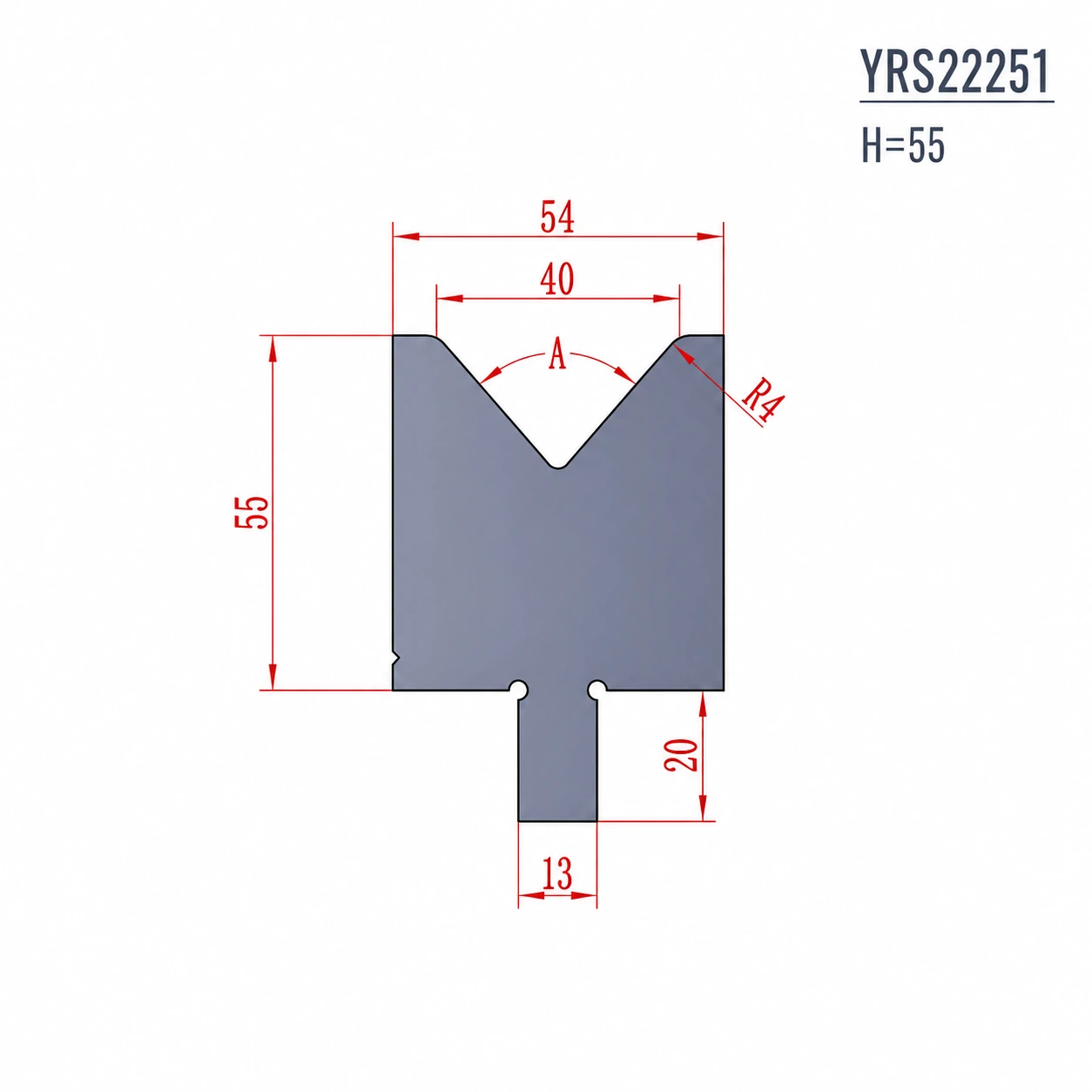

YRS22251.H=55 V40 European Press Brake Dies are designed for European style press brake tooling systems and are suitable for precision sheet metal bending applications. With a 55mm height, V40 die opening, and 88° / 85° angle, this model is a practical choice for press brake operations that require stable and accurate forming performance.
This press brake die is available in C45 / S45C / 1045 and 42CrMo / 42CrMo4 / 4140 material options. It features general hardness HRC48°±2, induction hardened working areas HRC54°–58°, and surface tolerance of ±0.03mm. The maximum loading capacity is 100Ton/m.
YRS22251 is available in multiple sectional lengths, making it suitable for flexible tooling combinations. OEM & ODM service, as well as customize & design service, are available.

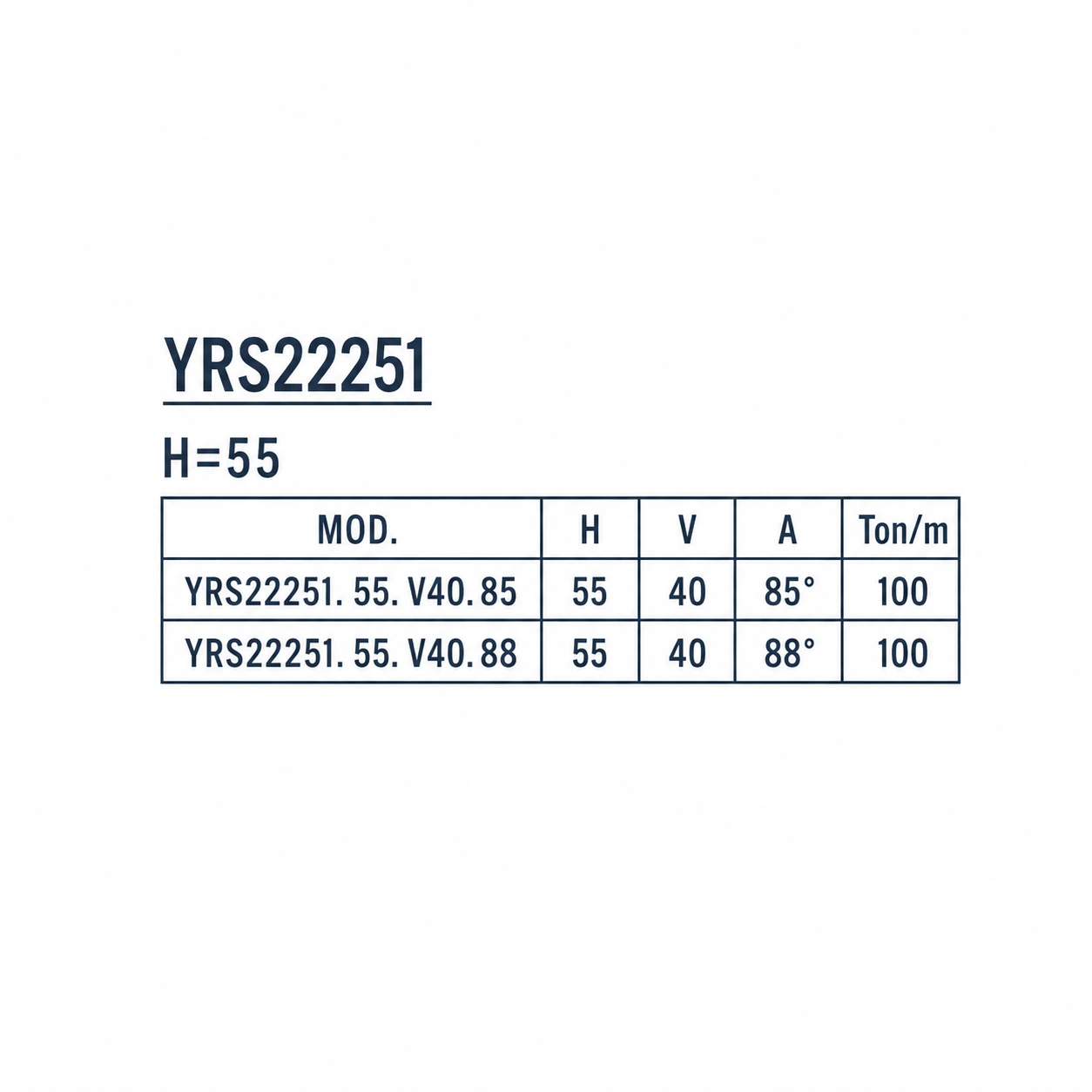

Product Specifications
- Model: YRS22251.H=55
- Tool System: European Style Press Brake Tooling
- Product Type: Press Brake Dies / Bottom Tools / 1V Insert
- Height: 55mm
- Die Opening: V40
- Angle: 88°, 85°
- Maximum Loading: 100Ton/m
- Material: C45=S45C=1045, 42CrMo=42CrMo4=4140
- General Hardness: HRC48°±2
- Induction Hardened: HRC54°–58°
- Surface Tolerance: ±0.03mm
- Sectioned: Available
- OEM & ODM Service: Available
- Customize & Design Service: Available
Length and Weight
- 835mm / 18.2kg
- 805mm / 17.6kg
- 515mm / 11.3kg
- 415mm / 9.1kg
Available Sections
- Total: 835mm — Available sections: 10, 15, 20, 40, 50, 100, 200, 400
- Total: 805mm — Available sections: 10, 15, 20, 40, 50, 100, 200, 370
- Total: 515mm — Available sections: 10, 15, 20, 40, 50, 100, 280
- Total: 415mm
