YRS22250 H=55 V32 A=88°,85° European Press Brake Dies

YRS22250 H=55 European Press Brake Dies are precision bottom tools designed for CNC sheet metal bending applications. This model is suitable for European style press brake tooling systems and can be used with matching press brake punches to achieve accurate and stable bending results.

The die is made from high-quality 42CrMo / 4140 steel, providing stable mechanical performance, wear resistance, and long service life. The working area is induction hardened to HRC54°–58°, helping improve durability during repeated bending operations.

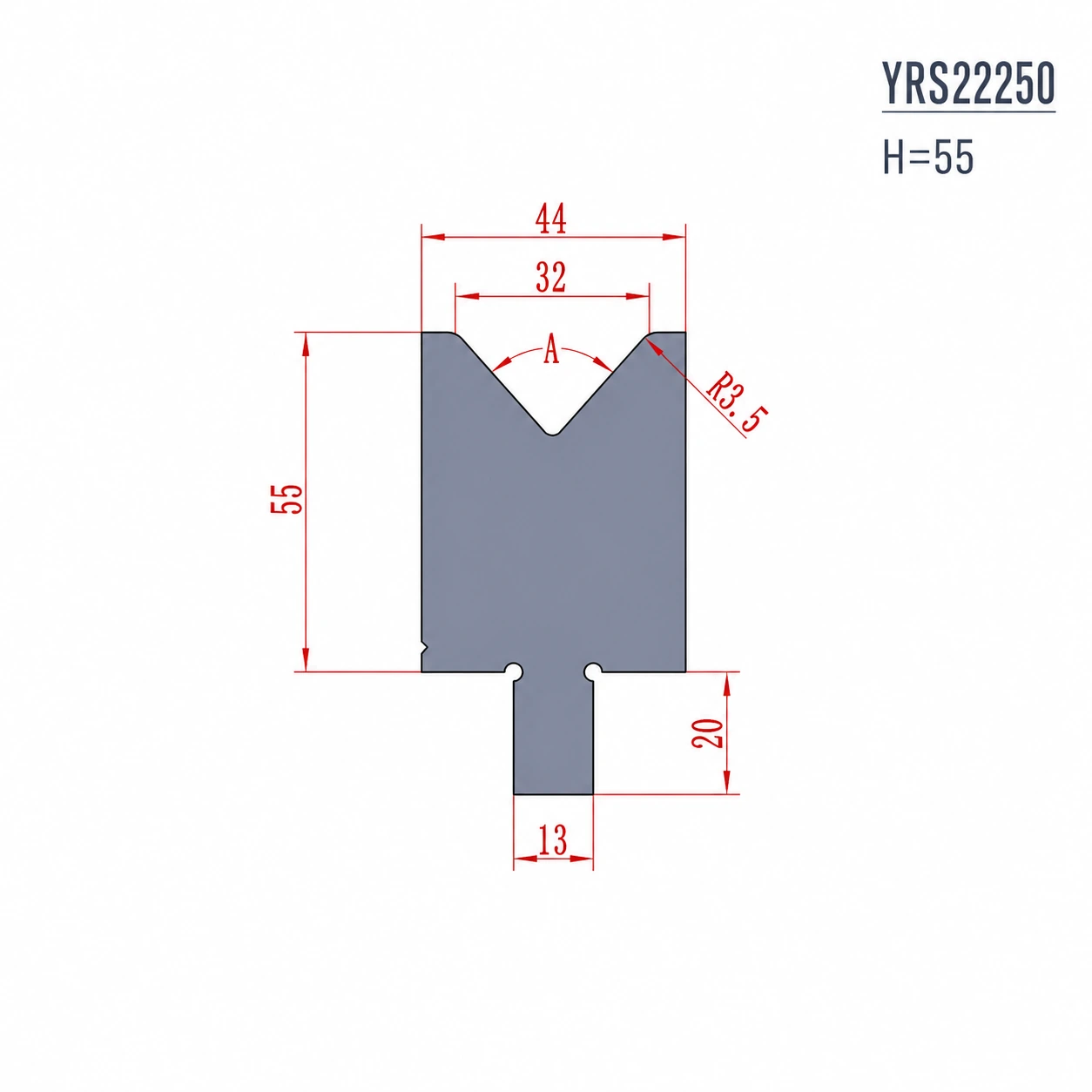

With a height of 55mm, V32 die opening, and 88° / 85° angle options, YRS22250 is suitable for CNC sheet metal bending applications that require a wider V opening. The maximum loading capacity is 100 Ton/m, making it a strong and reliable choice for press brake users who need insert-type bottom tooling.

This European press brake die is available in full length and sectional lengths, allowing users to choose flexible combinations for different bending jobs. OEM, ODM, and customized tooling services are also available according to customer drawings, press brake machine models, and bending applications.

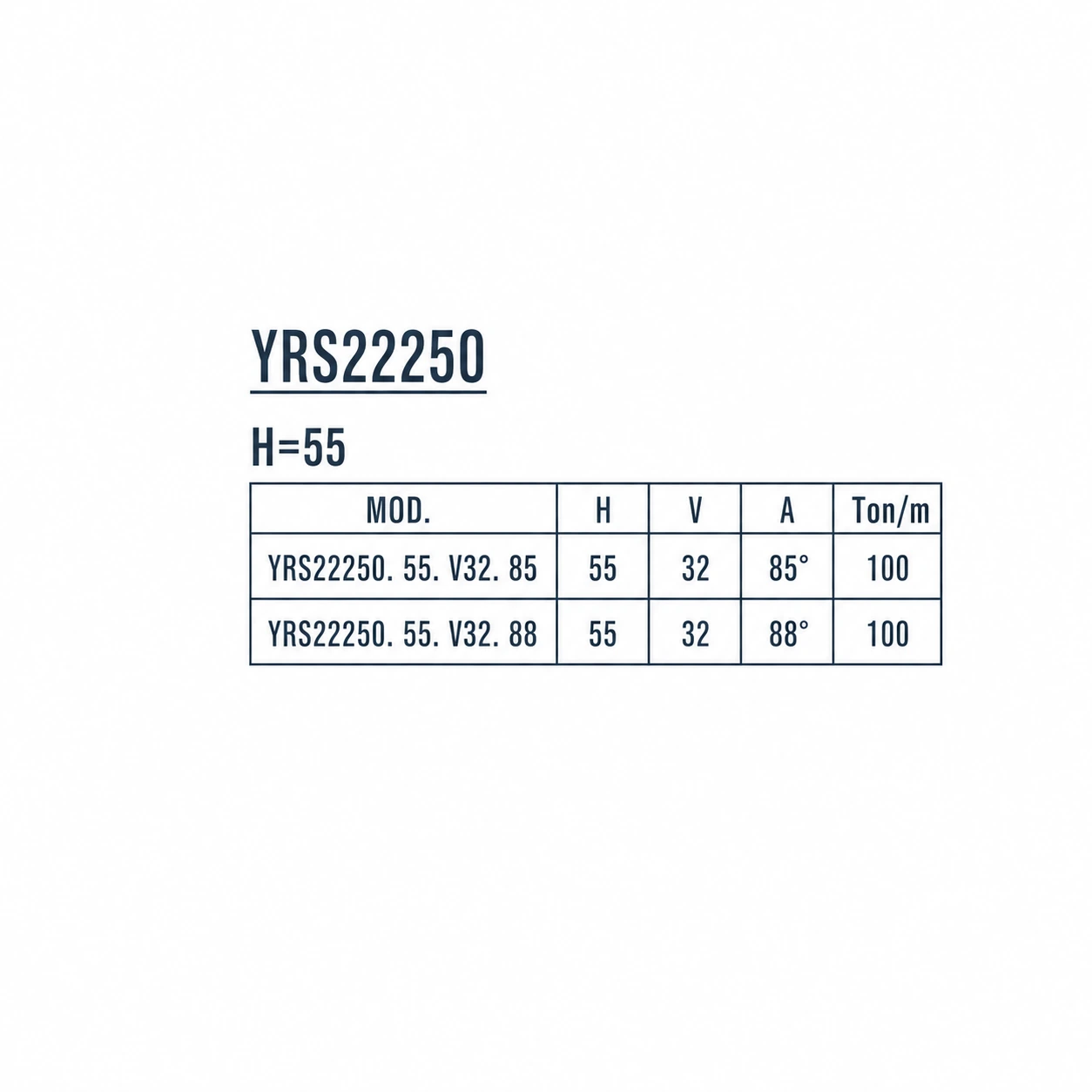

Products Detail

Model: YRS22250.H=55
Material: 42CrMo / 4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Tool System: European Style Press Brake Tooling
Tool Type: Press Brake Die / Bottom Tool / 1V Insert
Height: 55mm
Die Opening: V32
Angle: 88°, 85°
Maximum Loading: 100 Ton/m
Sectioned: Available
OEM & ODM Service: Available
Customized Design Service: Available

Total: 835mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 400
Total: 805mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 370
Total: 515mm, Available sections: 10, 15, 20, 40, 50, 100, 280
Total: 415mm

Length and Weight

835mm / 15.7kg
805mm / 15.1kg
515mm / 9.7kg
415mm / 7.8kg
