YRS22235 H=60 European Press Brake Dies are precision bottom tools designed for CNC sheet metal bending applications. This model is suitable for European style press brake tooling systems and is used together with press brake punches to achieve accurate and stable bending results.
The die is available in C45 / S45C / 1045 or 42CrMo / 4140 material options, providing reliable mechanical performance, wear resistance, and long service life. The working area is induction hardened to HRC54°–58°, helping improve durability during repeated bending operations.

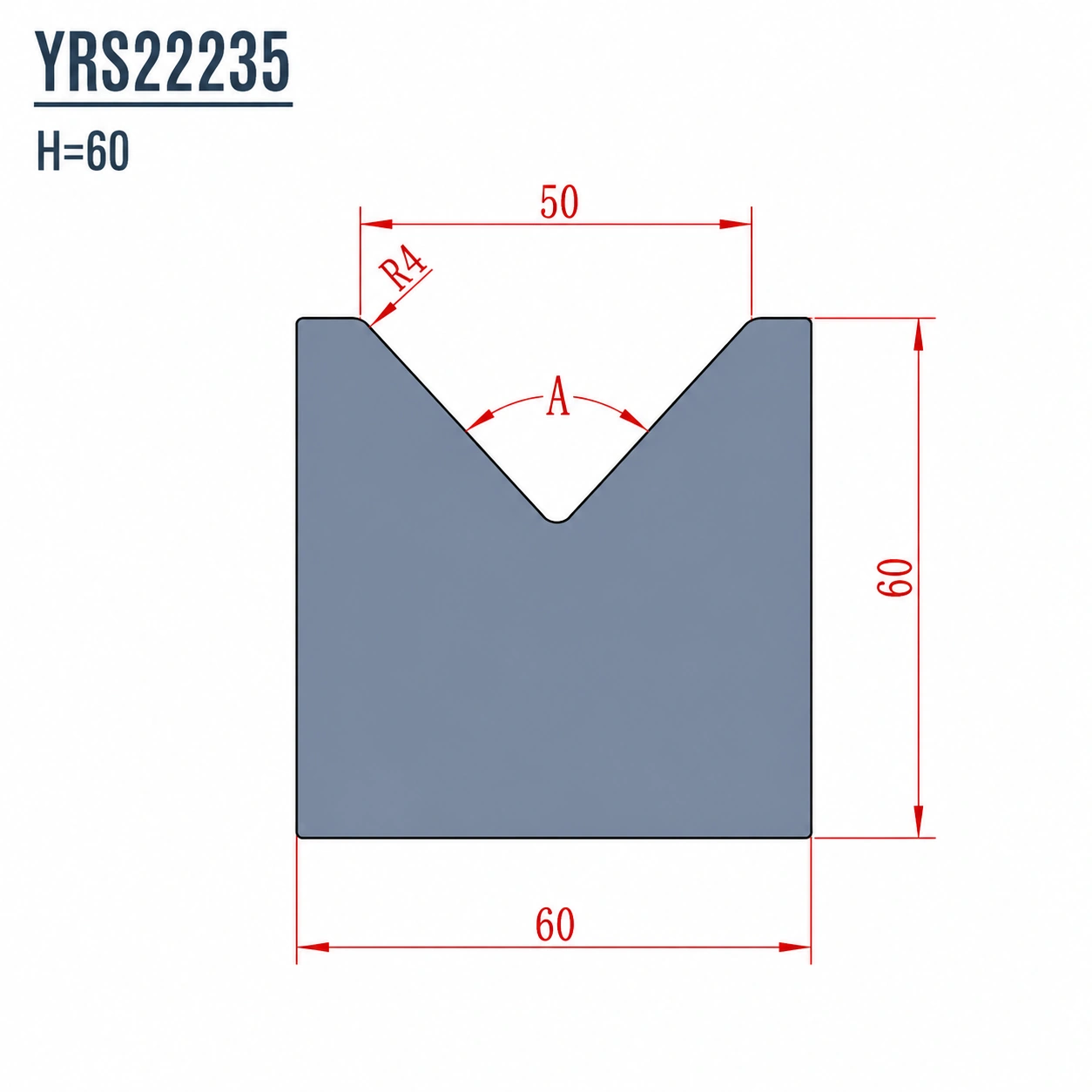

With a height of 60mm, V50 die opening, and 88° / 85° angle options, YRS22235 is suitable for sheet metal bending applications that require a wider V opening. The maximum loading capacity is 80 Ton/m, making it a reliable choice for CNC press brake users.
Products Detail

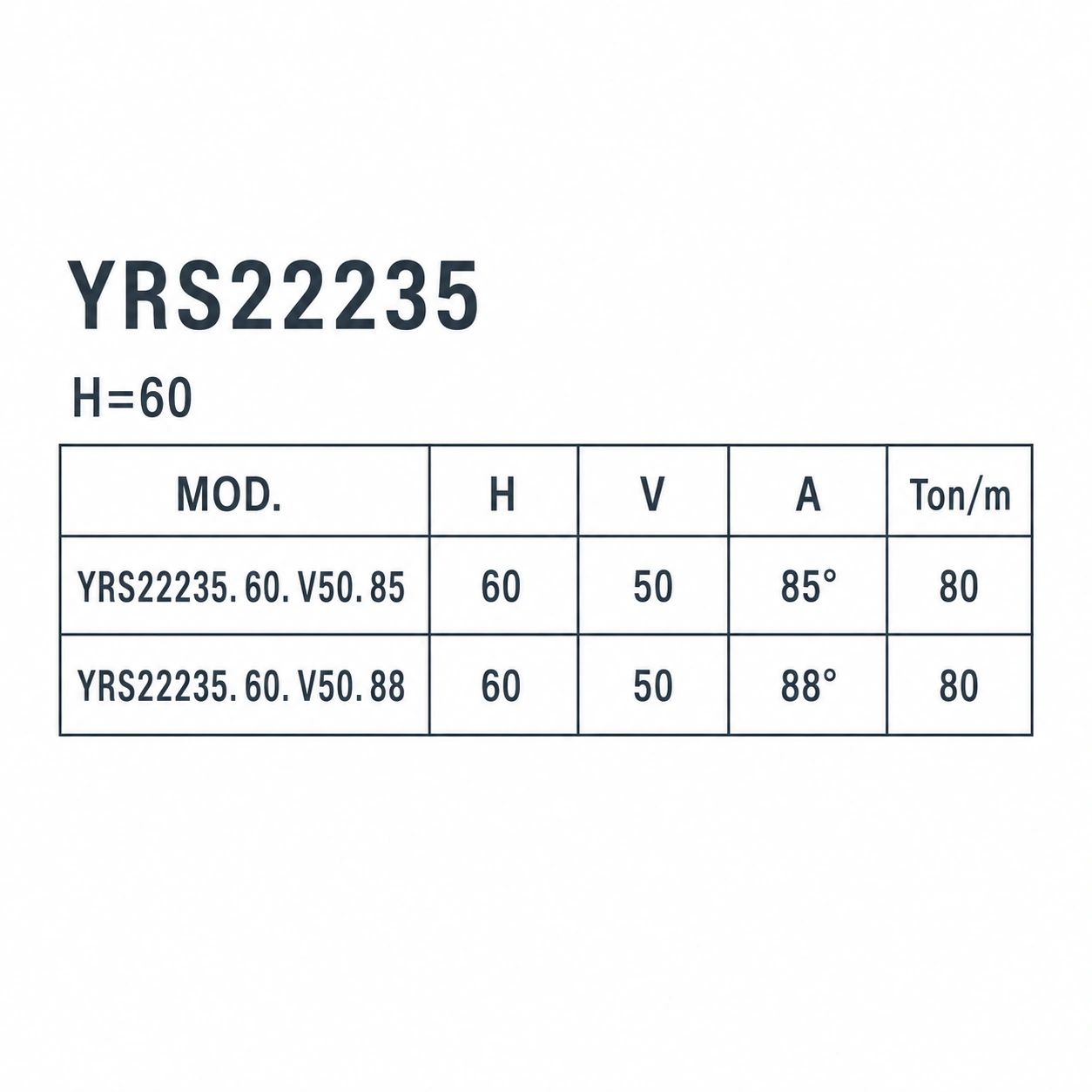

Model: YRS22235.H=60
Material: C45 / S45C / 1045 or 42CrMo / 4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Tool System: European Style Press Brake Tooling
Tool Type: Press Brake Die / Bottom Tool
Height: 60mm
Die Opening: V50
Angle: 88°, 85°
Maximum Loading: 80 Ton/m
Sectioned: Available
OEM & ODM Service: Available
Customized Design Service: Available
Total: 835mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 400
Total: 805mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 370
Total: 515mm, Available sections: 10, 15, 20, 40, 50, 100, 280
Total: 415mm
Length and Weight
835mm / 19.1kg
805mm / 18.4kg
515mm / 11.8kg
415mm / 9.5kg
