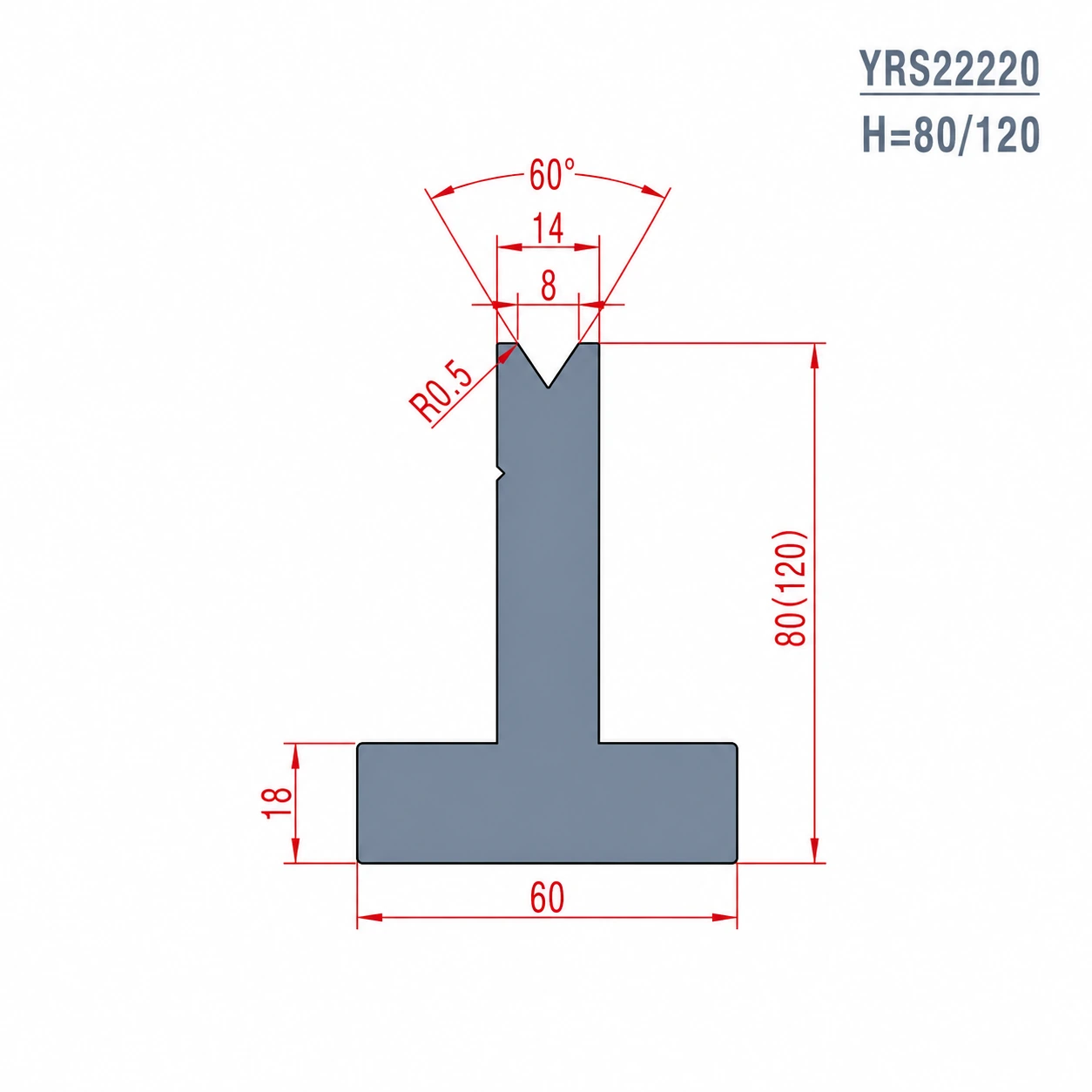

The YRS22220 H=80/120 European Press Brake Dies are high-precision bottom tools engineered for specialized CNC sheet metal bending requiring a sharp 60° angle. These dies are designed for the standard European Style Press Brake Tooling system, ensuring seamless compatibility and reliable performance in industrial fabrication environments.
Crafted from premium 42CrMo / 4140 alloy steel, these tools provide superior mechanical strength and durability. The critical working surfaces are induction hardened to HRC54°–58°, delivering exceptional resistance to wear and maintaining geometric accuracy over long-term use. With a precision surface tolerance of ±0.03mm, the YRS22220 guarantees consistent, high-quality bending results.
The V8 die opening is optimized for fine to medium-gauge bending, and the availability of dual height configurations (80mm and 120mm) provides the flexibility needed for various complex bending operations. We offer a full range of standard lengths and sectional configurations, supported by professional OEM, ODM, and custom design services.

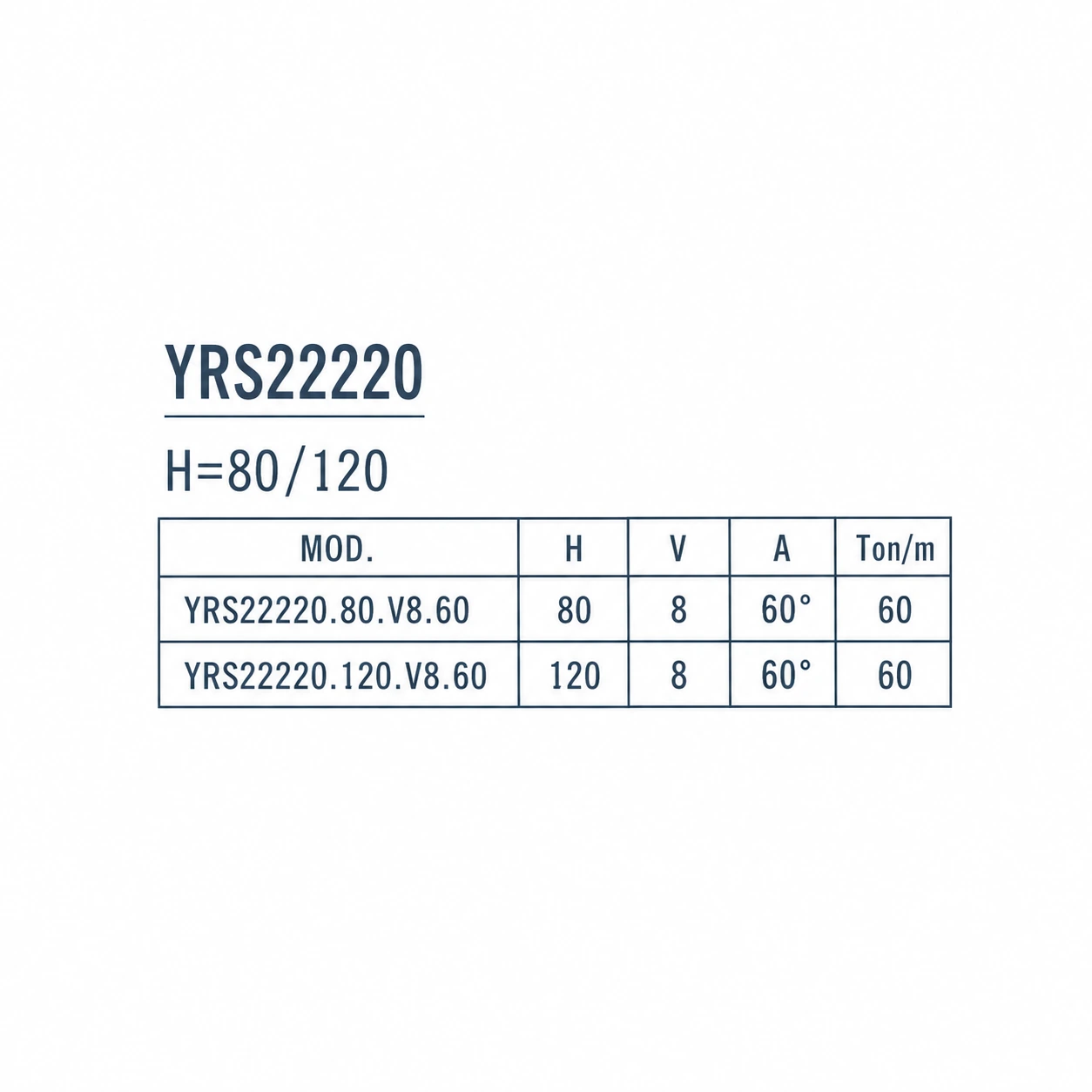

Products Detail
-
Model: YRS22220.H=80/120
-
Material: 42CrMo = 42CrMo4 = 4140
-
General Hardness: HRC48°±2
-
Induction Hardened: HRC54°–58°
-
Surface Tolerance: ±0.03mm
-
Tool System: European Style Press Brake Tooling
-
Tool Type: Press Brake Die / Bottom Tool
-
Height: 80/120mm
-
Die Opening: V8
-
Angle: 60°
-
Maximum Loading: 60 Ton/m
-
Sectioned: AVAILABLE
-
OEM & ODM Service: AVAILABLE
-
Customized & Design Service: AVAILABLE
Available Sections
-
Total 835mm: 10, 15, 20, 40, 50, 100, 200, 400
-
Total 805mm: 10, 15, 20, 40, 50, 100, 200, 370
-
Total 515mm: 10, 15, 20, 40, 50, 100, 280
-
Total 415mm
Length and Weight
-
H=80 Model: 835mm/12.6kg, 805mm/12.1kg, 515mm/7.8kg, 415mm/6.3kg
-
H=120 Model: 835mm/16.2kg, 805mm/15.7kg, 515mm/10.0kg, 415mm/8.1kg
