YRS22212 H=80/120 V6 A=88°,85° European Press Brake Dies

Product Description

YRS22212 H=80/120 European Press Brake Dies are precision bottom tools designed for CNC sheet metal bending applications. This model is suitable for European style press brake tooling systems and is used together with press brake punches to achieve accurate and stable bending results.

The die is made from high-quality 42CrMo / 4140 steel, providing strong mechanical performance, good wear resistance, and long service life. The working area is induction hardened to HRC54°–58°, helping improve durability during repeated bending operations.

With height options of 80mm and 120mm, V6 die opening, and 88° / 85° angle options, YRS22212 is suitable for precise sheet metal bending requirements. The maximum loading capacity is 100 Ton/m, making it a strong and reliable choice for CNC press brake users who need durable bottom tooling.

Products Detail

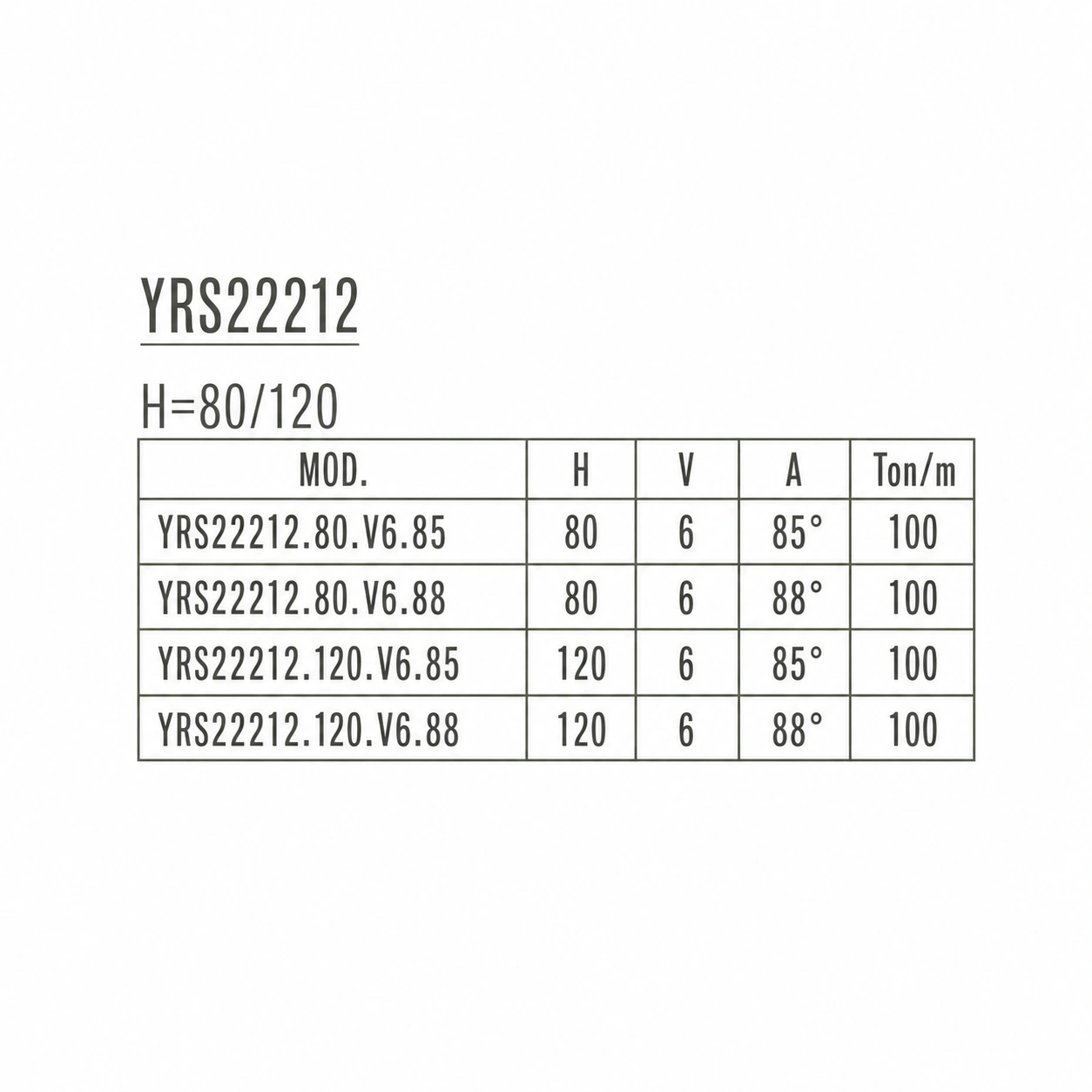

Model: YRS22212.H=80/120
Material: 42CrMo / 4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Tool System: European Style Press Brake Tooling
Tool Type: Press Brake Die / Bottom Tool

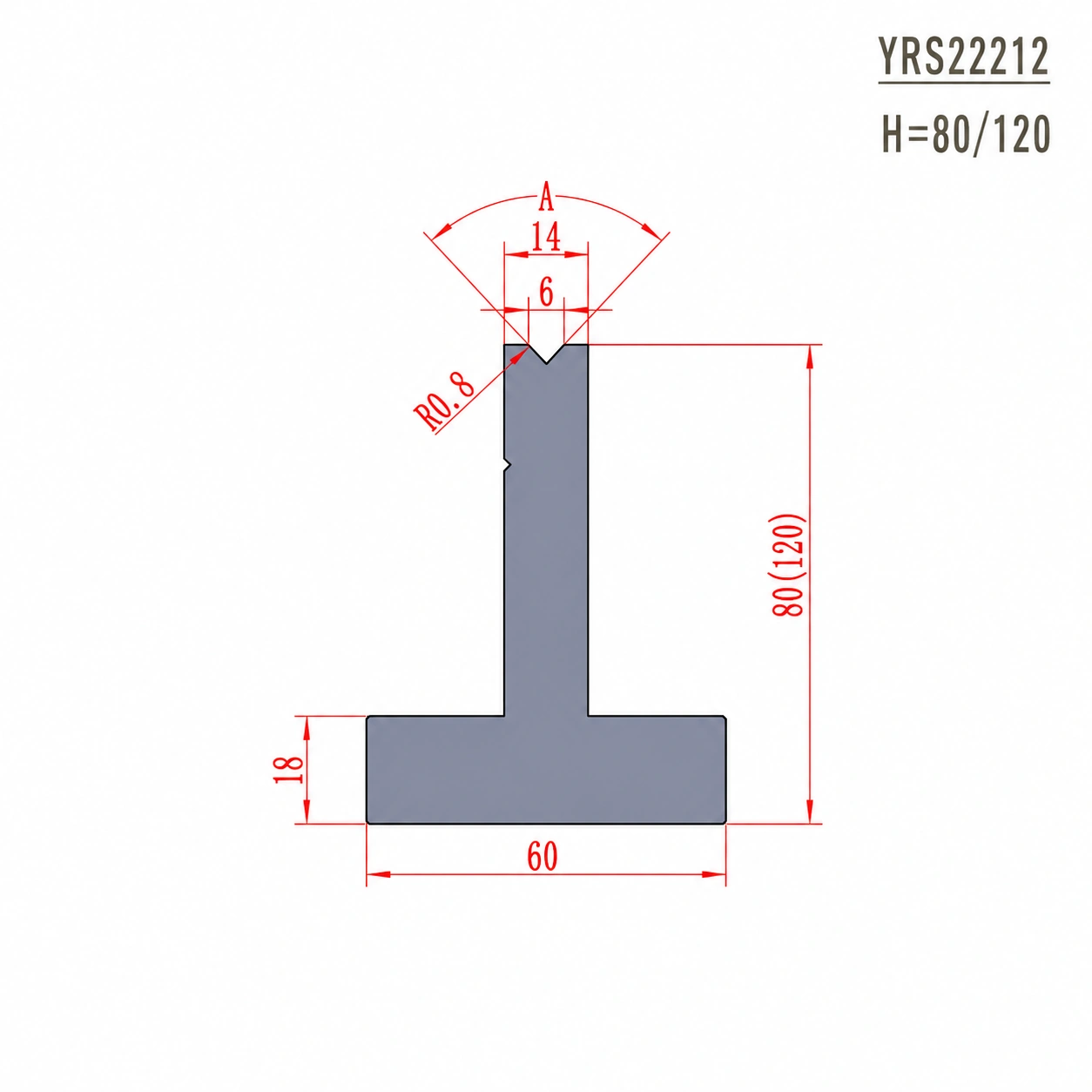

Height: 80/120mm
Die Opening: V6
Angle: 88°, 85°
Maximum Loading: 100 Ton/m
Sectioned: Available
OEM & ODM Service: Available
Customized Design Service: Available

Total: 835mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 400
Total: 805mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 370
Total: 515mm, Available sections: 10, 15, 20, 40, 50, 100, 280
Total: 415mm, Available sections: Available on request

Length and Weight

H=80:
835mm / 12.7kg
805mm / 12.2kg
515mm / 7.8kg
415mm / 6.3kg

H=120:
835mm / 16.4kg
805mm / 15.8kg
515mm / 10.1kg
415mm / 8.1kg
