YRS22211 H=46 V12 A=88°,85° European Press Brake Dies

YRS22211 H=46 European Press Brake Dies are precision bottom tools designed for CNC sheet metal bending applications. This model is suitable for European style press brake tooling systems and is used together with press brake punches to achieve accurate and stable bending results.

The die is made from high-quality 42CrMo / 4140 steel, providing strong mechanical performance, good wear resistance, and long service life. The working area is induction hardened to HRC54°–58°, helping improve durability during repeated bending operations.

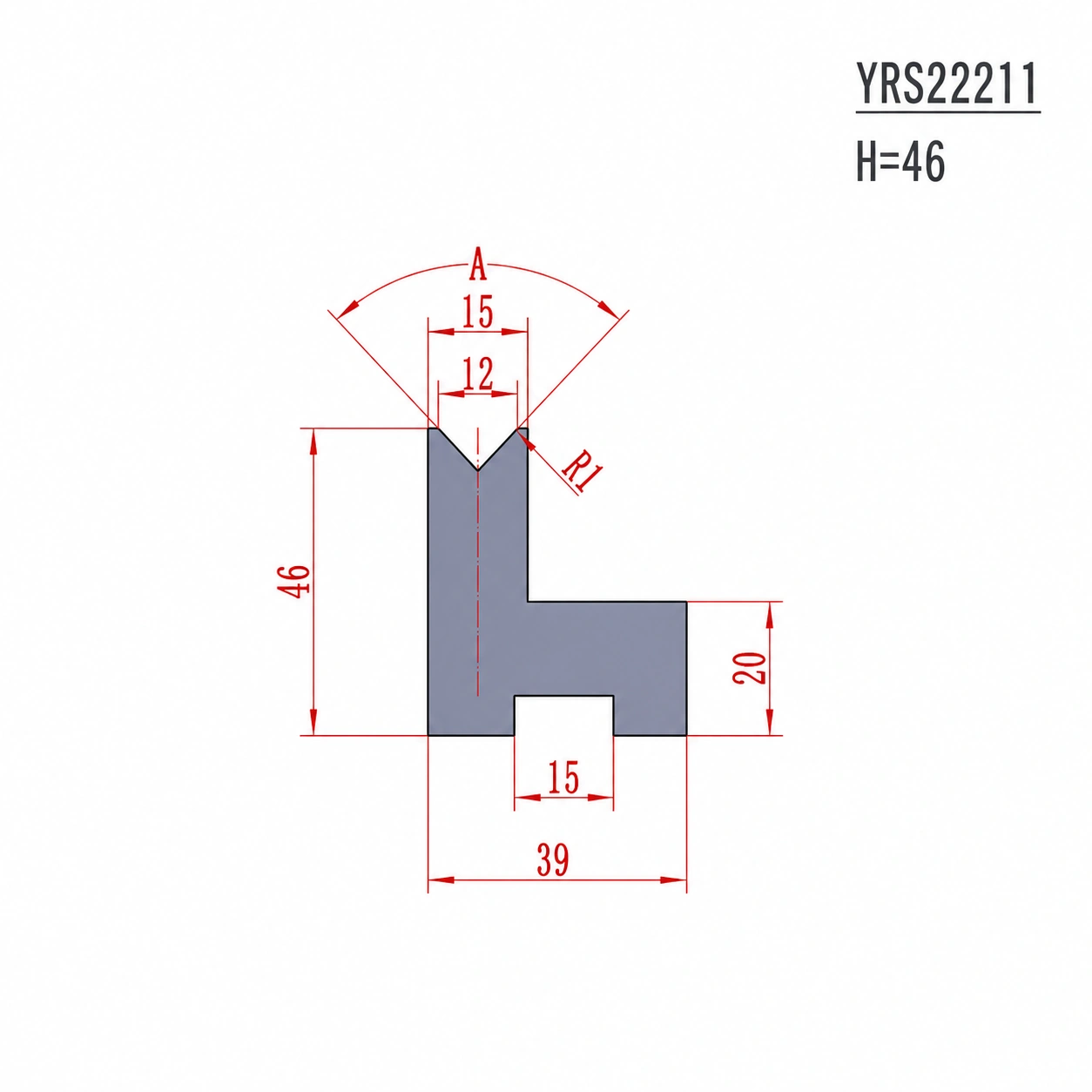

With a height of 46mm, V12 die opening, and 88° / 85° angle options, YRS22211 is suitable for precise sheet metal bending requirements. The maximum loading capacity is 60 Ton/m, making it a reliable choice for CNC press brake users who need strong and accurate bottom tooling.

Products Detail

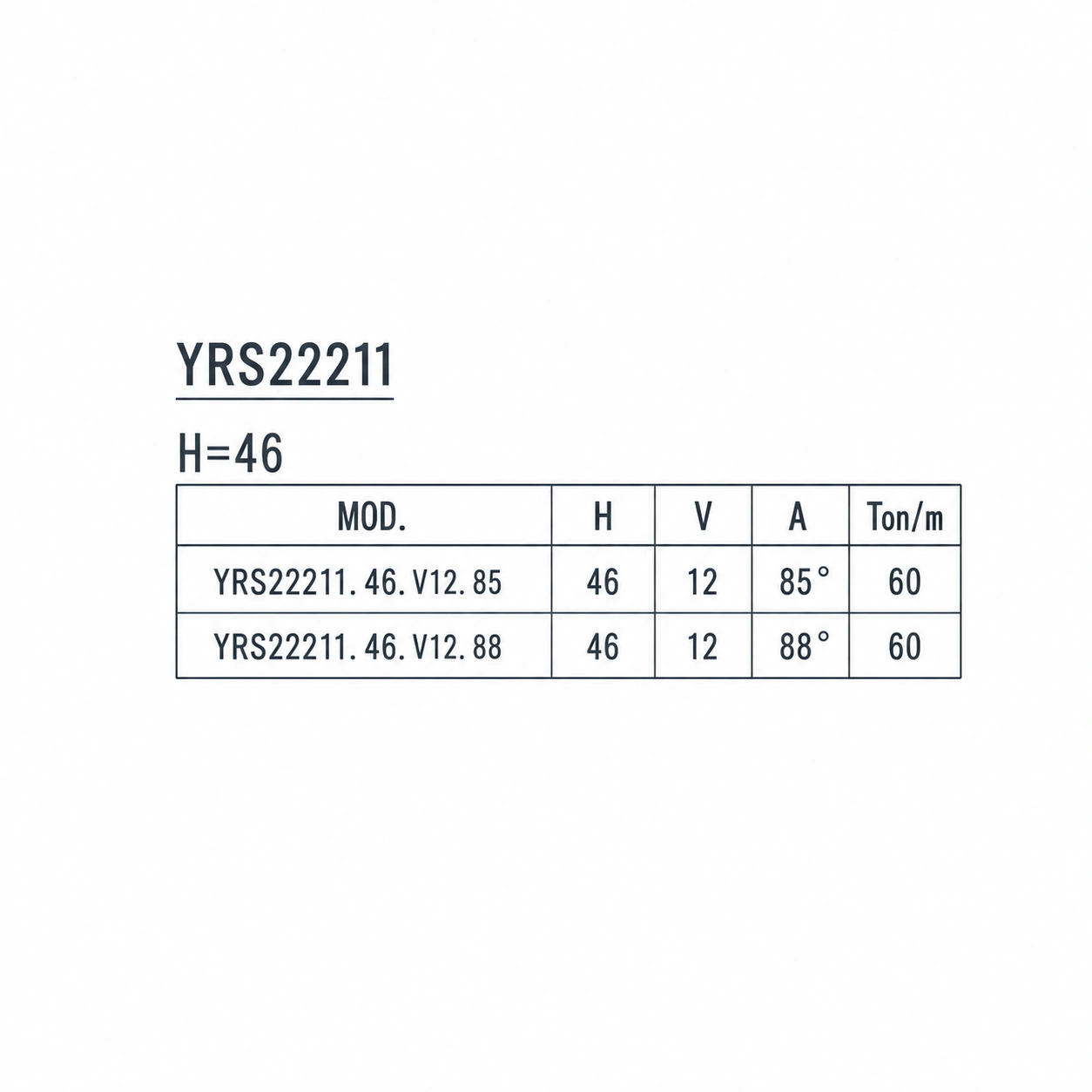

Model: YRS22211.H=46
Material: 42CrMo / 4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Tool System: European Style Press Brake Tooling
Tool Type: Press Brake Die / Bottom Tool
Height: 46mm
Die Opening: V12
Angle: 88°, 85°
Maximum Loading: 60 Ton/m
Sectioned: Available
OEM & ODM Service: Available
Customized Design Service: Available

Total: 835mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 400
Total: 805mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 370
Total: 515mm, Available sections: 10, 15, 20, 40, 50, 100, 280
Total: 415mm, Available sections: Available on request

Length and Weight

835mm / 6.8kg
805mm / 6.6kg
515mm / 4.2kg
415mm / 3.4kg
