YRS22206 H=46 V6-V10 A=30° European Press Brake Dies

YRS22206 H=46 European Press Brake Dies are precision bottom tools designed for CNC sheet metal bending applications. This model is suitable for European style press brake tooling systems and is used together with press brake punches to achieve accurate and stable bending results.

The die is made from high-quality 42CrMo / 4140 steel, providing strong mechanical performance, good wear resistance, and long service life. The working area is induction hardened to HRC54°–58°, helping improve durability during repeated bending operations.

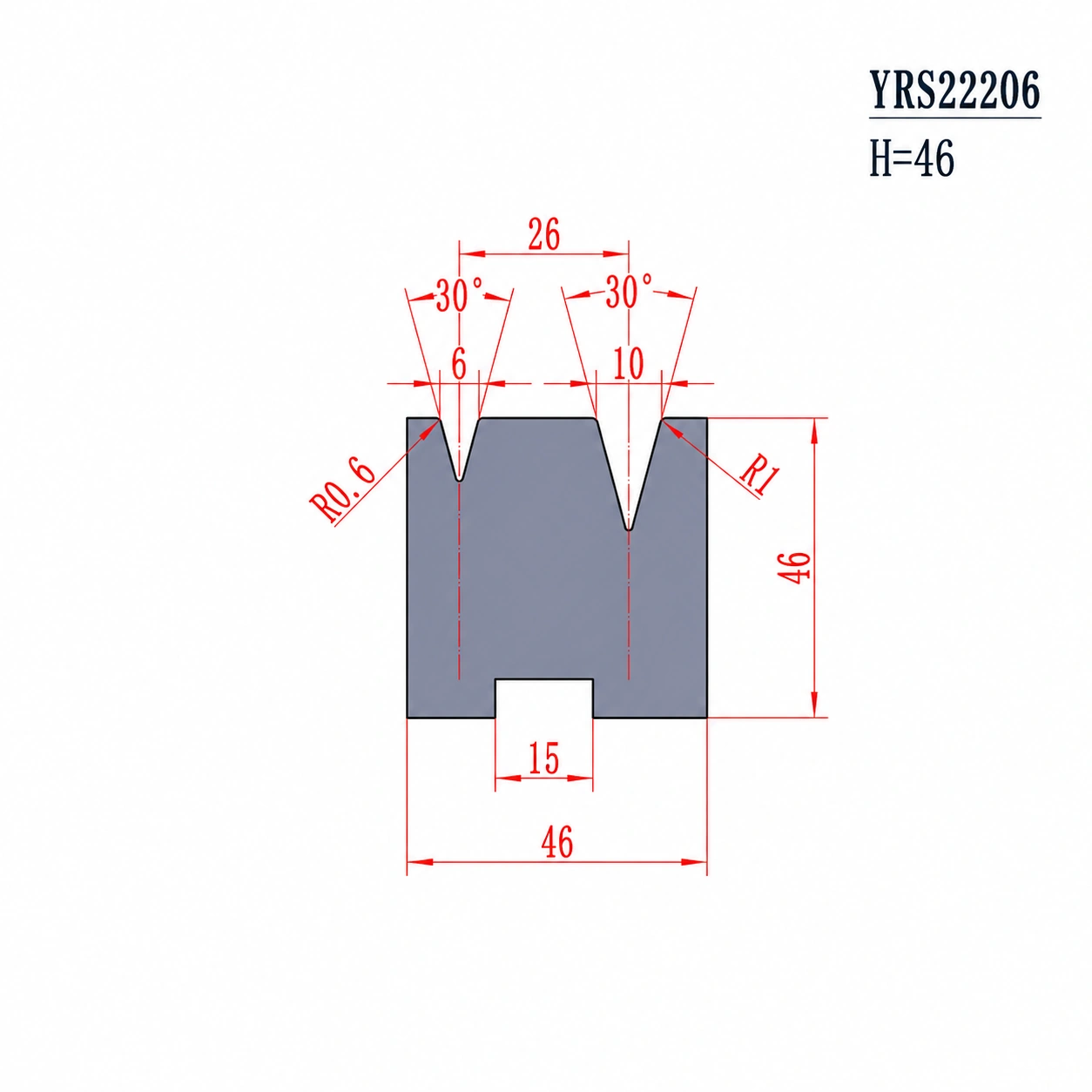

With a height of 46mm, V6-V10 die openings, and a 30° angle, YRS22206 is suitable for different sheet metal bending requirements. The maximum loading capacity is 30 Ton/m, making it a practical choice for CNC press brake users who need reliable bottom tooling for precise forming work.

Products Detail

Model: YRS22206.H=46
Material: 42CrMo / 4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Tool System: European Style Press Brake Tooling
Tool Type: Press Brake Die / Bottom Tool
Height: 46mm
Die Opening: V6-V10
Angle: 30°
Maximum Loading: 30 Ton/m
Sectioned: Available
OEM & ODM Service: Available
Customized Design Service: Available

Total: 835mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 400
Total: 805mm, Available sections: 10, 15, 20, 40, 50, 100, 200, 370
Total: 515mm, Available sections: 10, 15, 20, 40, 50, 100, 280
Total: 415mm, Available sections: Available on request

Length and Weight

835mm / 12.5kg
805mm / 12.0kg
515mm / 7.7kg
415mm / 6.2kg
