YRS22120.H=120 A=85°,88° European Press Brake Punches

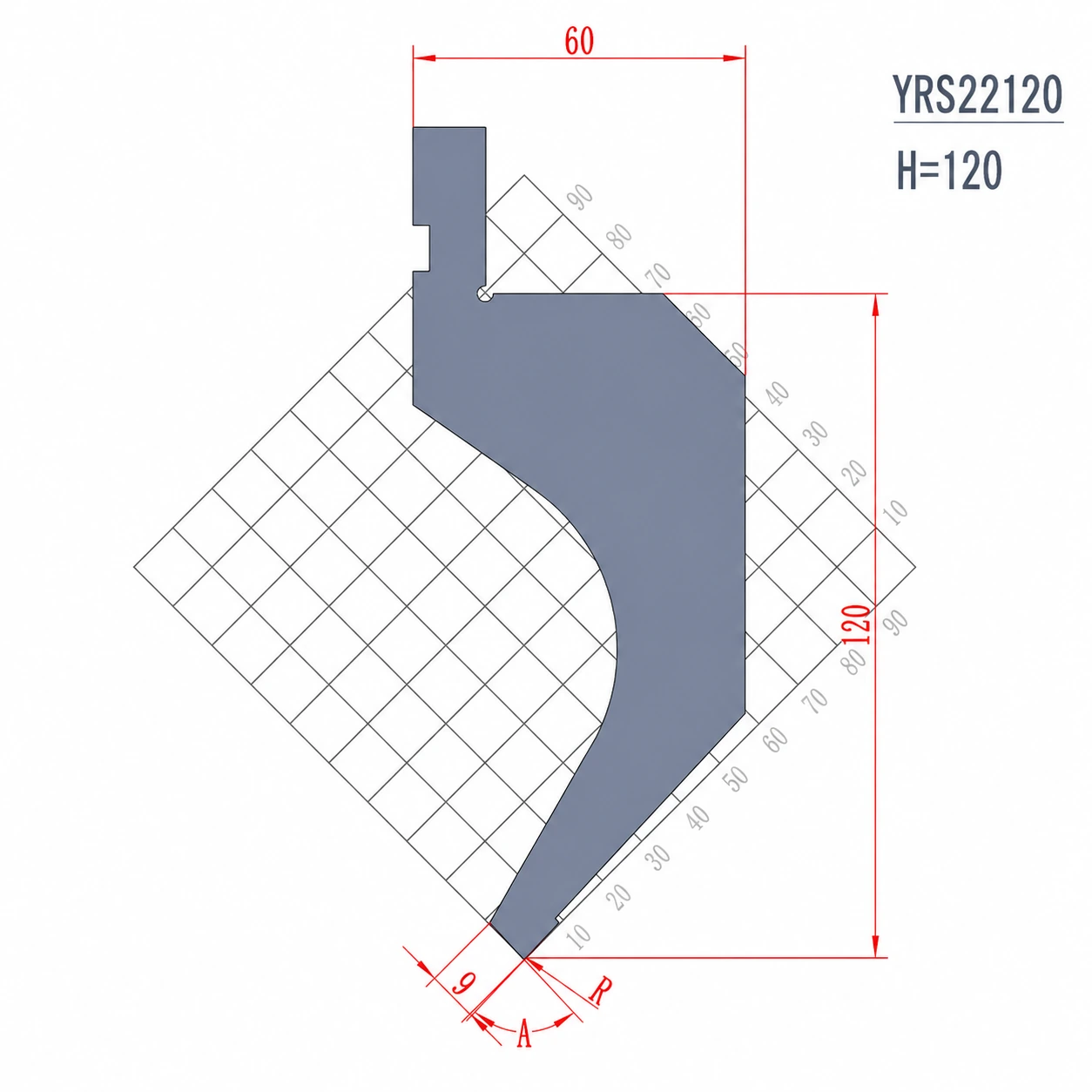

YRS22120.H=120 European Press Brake Punches are designed for European style press brake tooling systems and are suitable for CNC sheet metal bending applications. With a 120mm height, 85° / 88° angle, and radius options of R0.3, R0.6, and R0.8, this punch is suitable for accurate and stable sheet metal forming.

This press brake punch is made from 42CrMo / 42CrMo4 / 4140 material. It features general hardness HRC48°±2, induction hardened working areas HRC54°–58°, and surface tolerance of ±0.03mm.

The maximum loading capacity is 50Ton/m. YRS22120 is available in standard lengths and sectional lengths for flexible tooling combinations. OEM & ODM service and customize & design service are available.

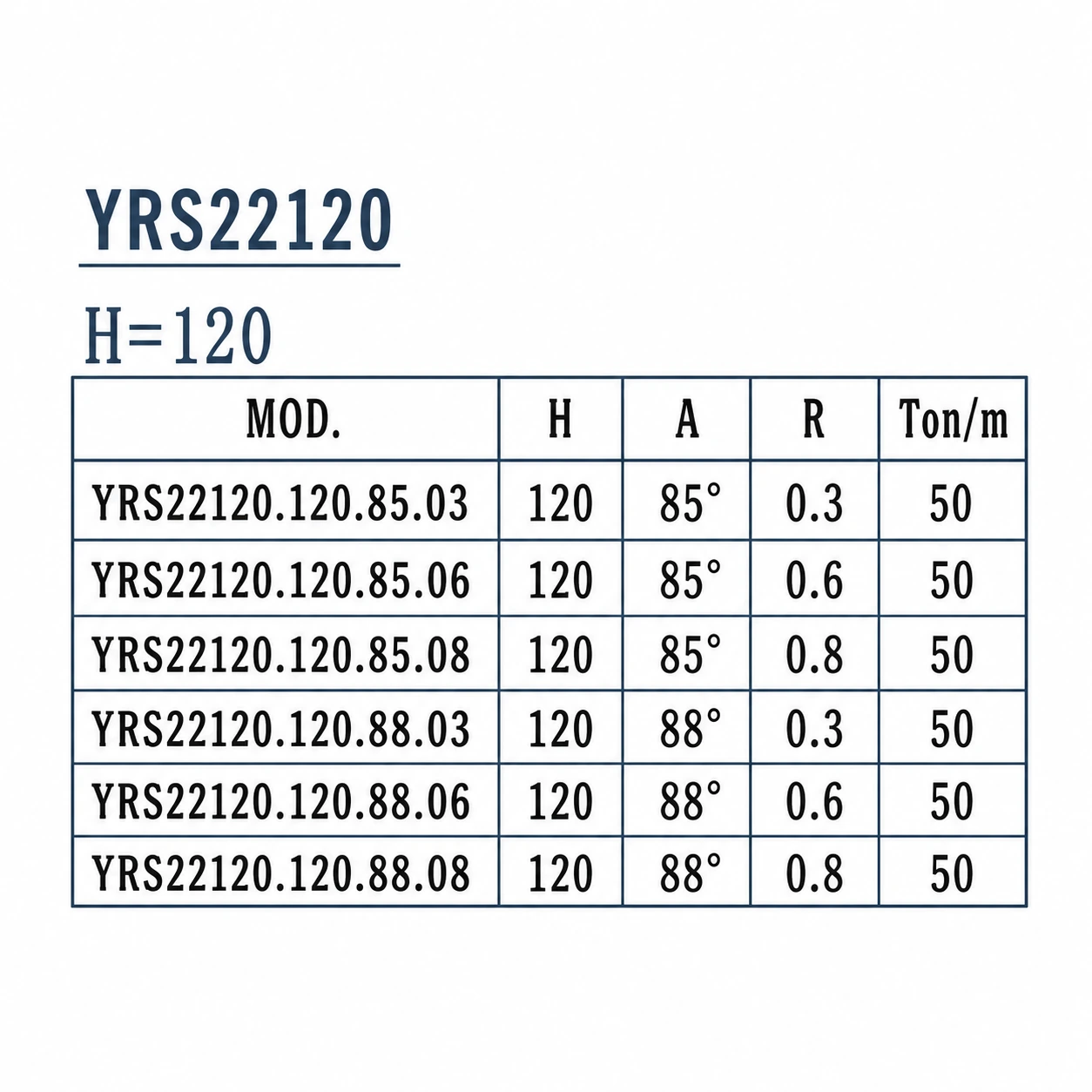

Product Specifications

Model: YRS22120.H=120
Tool System: European Style Press Brake Tooling
Product Type: Press Brake Punches / Top Tools / Gooseneck Punches
Height: 120mm
Angle: 85°, 88°
Radius: R0.3, R0.6, R0.8
Maximum Loading: 50Ton/m
Material: 42CrMo=42CrMo4=4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Sectioned: Available
OEM & ODM Service: Available
Customize & Design Service: Available

Length and Weight

835mm / 26.1kg
805mm / 25.1kg
515mm / 16.1kg
415mm / 12.9kg

Available Sections

Total: 835mm, Available sections: 100 Left, 10, 15, 20, 40, 50, 200, 300, 100 Right
Total: 805mm, Available sections: 100 Left, 10, 15, 20, 40, 50, 200, 270, 100 Right
Total: 515mm, Available sections: 100 Left, 10, 15, 20, 40, 50, 180, 100 Right
Total: 415mm
