YRS22116 H=120 A=85°,88° European Press Brake Gooseneck Punches

YRS22116 H=120 European Press Brake Gooseneck Punches are precision press brake top tools designed for CNC sheet metal bending applications. This gooseneck punch design provides excellent clearance for box bending, deep bending, return flange bending, and other forming applications where extra tool clearance is required.

The punch is made from high-quality 42CrMo / 4140 steel, providing stable mechanical performance, good wear resistance, and long service life. The working area is induction hardened to HRC54°–58°, helping improve durability during repeated bending operations.

With a height of 120mm, angles of 85° and 88°, and radius options of R0.3, R0.6, and R0.8, YRS22116 is suitable for different sheet metal bending requirements. The maximum loading capacity is 50 Ton/m, making it a reliable choice for CNC press brake users who need strong and accurate gooseneck bending tools.

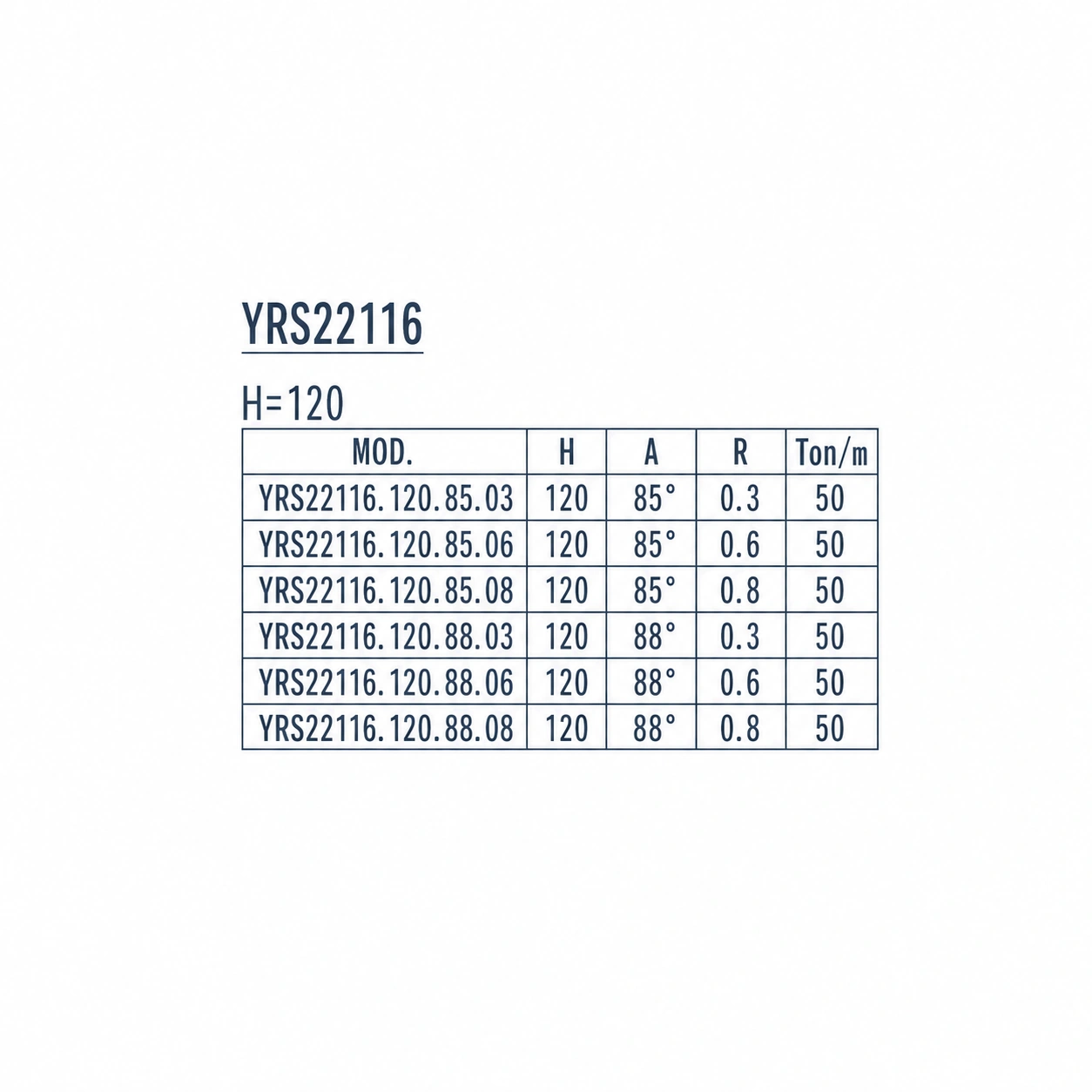

Products Detail

Model: YRS22116.H=120
Material: 42CrMo / 4140
General Hardness: HRC48°±2
Induction Hardened: HRC54°–58°
Surface Tolerance: ±0.03mm
Tool System: European Style Press Brake Tooling
Tool Type: Press Brake Gooseneck Punch / Top Tool

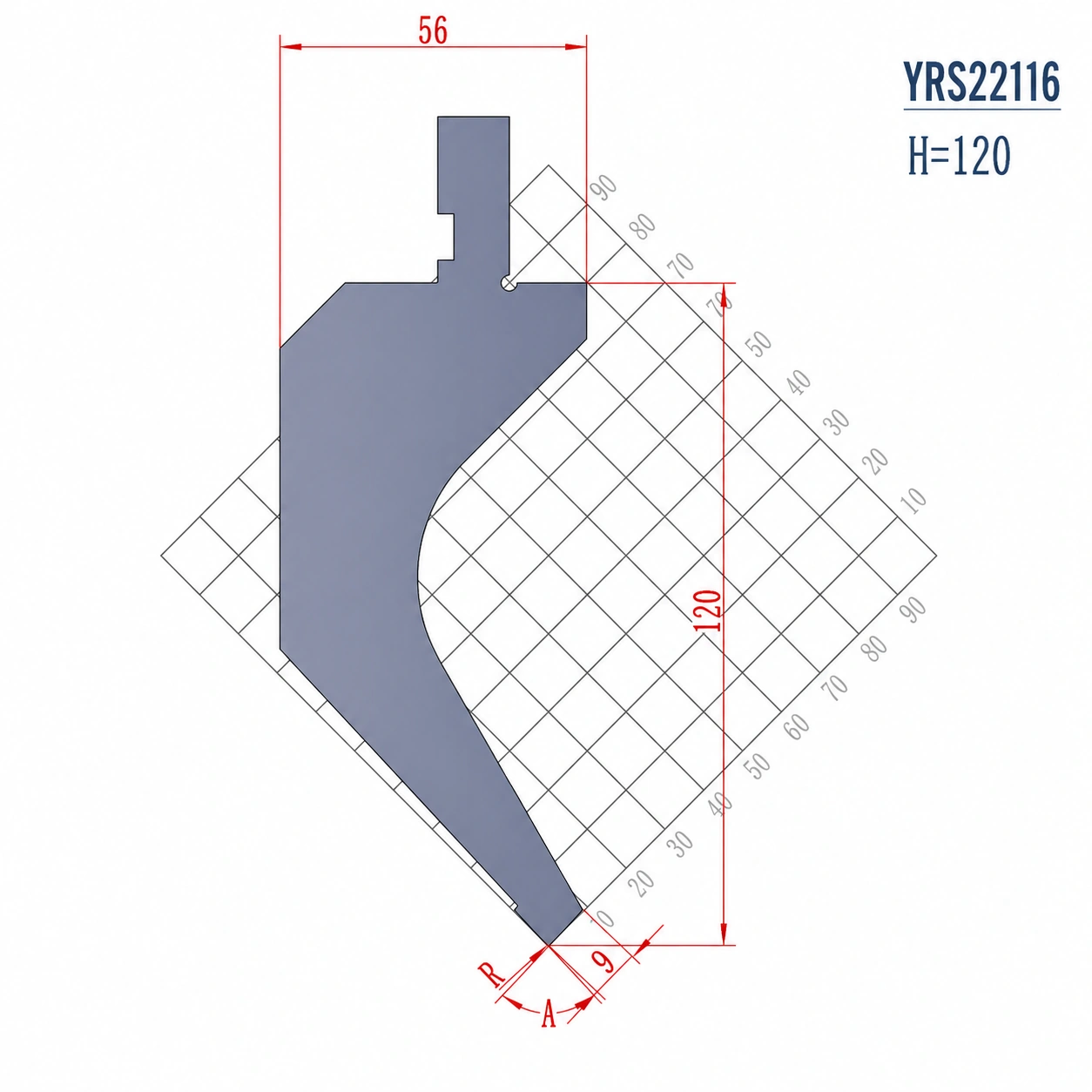

Height: 120mm
Angle: 85°, 88°
Radius: R0.3, R0.6, R0.8
Maximum Loading: 50 Ton/m
Sectioned: Available
OEM & ODM Service: Available
Customized Design Service: Available

Total: 835mm, Available sections: 100 Left, 10, 15, 20, 40, 50, 200, 300, 100 Right
Total: 805mm, Available sections: 100 Left, 10, 15, 20, 40, 50, 200, 270, 100 Right
Total: 515mm, Available sections: 100 Left, 10, 15, 20, 40, 50, 180, 100 Right
Total: 415mm, Available sections: Available on request
