A hydraulic riveting machine, also known as a fastener insertion machine or press riveting machine, is widely used in sheet metal fabrication for installing self-clinching nuts, studs, standoffs, screws, and other press-fit fasteners.
For manufacturers of electrical cabinets, metal enclosures, control boxes, chassis, automotive parts, and precision sheet metal components, a reliable riveting machine can greatly improve production efficiency, riveting quality, and consistency.

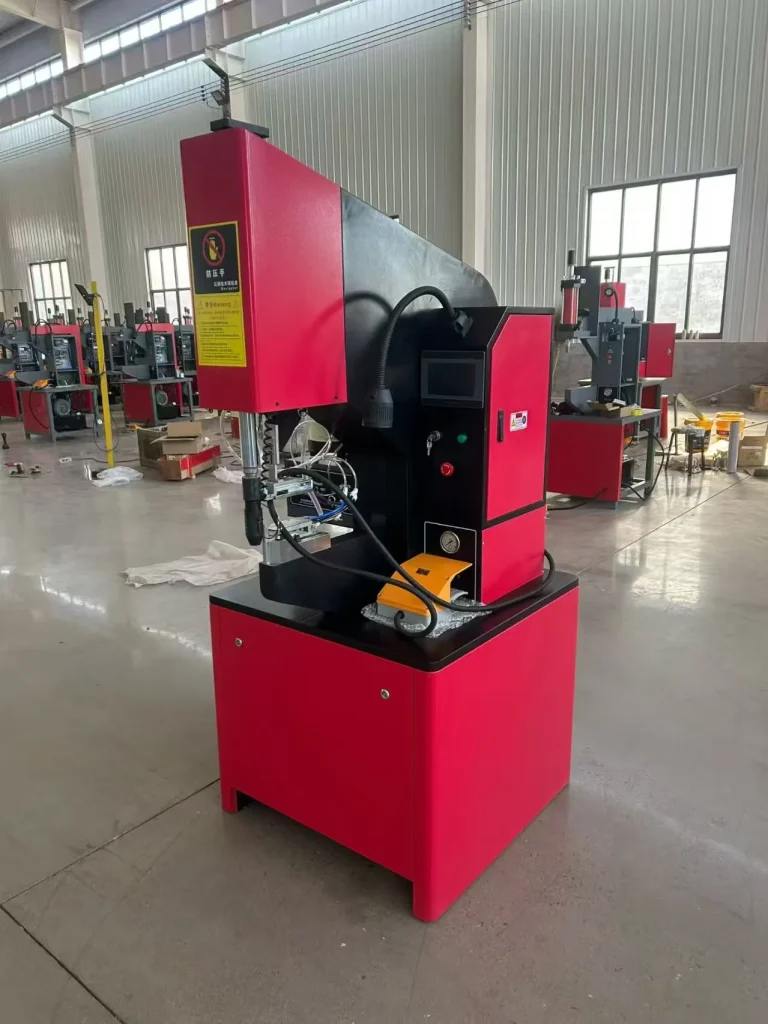

At YRS Industrial, we provide hydraulic riveting machines designed for stable performance, easy operation, and safe production. Our machines are suitable for a wide range of sheet metal materials, including carbon steel, galvanized sheet, stainless steel, aluminum plate, and copper plate.
What Is a Hydraulic Riveting Machine?
A hydraulic riveting machine is a machine that uses hydraulic pressure to press fasteners into sheet metal parts. Instead of welding or manual assembly, the machine inserts the fastener directly into the prepared hole of the sheet metal.
This process creates a strong and clean connection without damaging the surface of the workpiece when used correctly.

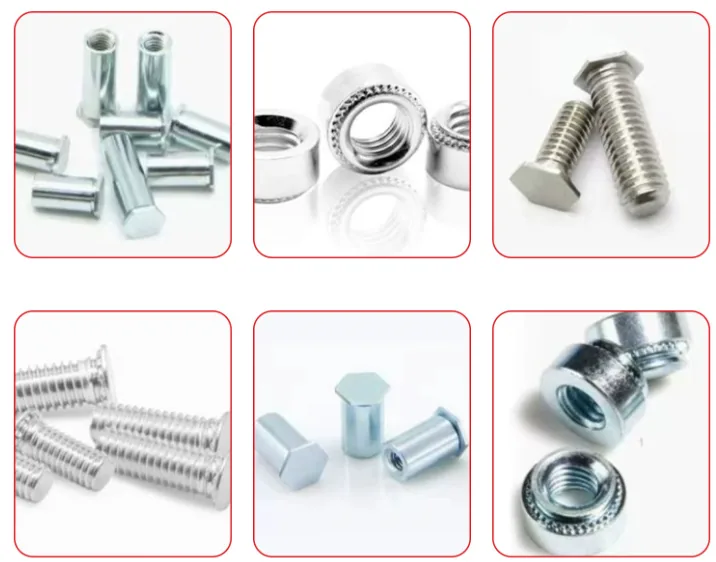

Hydraulic riveting machines are commonly used for installing:
- Self-clinching nuts
- Self-clinching standoffs
- Self-clinching screws
- Rivet nuts
- Rivet nut columns
- Threaded fasteners
- Sheet metal inserts
This makes the machine very useful for factories that need strong threaded connections in thin metal sheets.
Main Applications of Hydraulic Riveting Machines
Hydraulic riveting machines are used in many industries where sheet metal parts require accurate and repeatable fastener installation.
Common applications include:
Electrical Cabinet Manufacturing
Electrical cabinets and control boxes often require many threaded nuts and standoffs. A hydraulic riveting machine helps install these fasteners quickly and accurately.
Sheet Metal Enclosures
For metal enclosures, the machine can install nuts, screws, and standoffs for hinges, locks, panels, brackets, and internal components.
Automotive Parts
Many automotive sheet metal parts require strong threaded inserts. Hydraulic riveting provides a clean and stable fastening solution.
Communication Equipment
Server cabinets, telecom enclosures, and electronic housings often use self-clinching fasteners for assembly.
Precision Sheet Metal Fabrication
For workshops producing custom sheet metal parts, a hydraulic riveting machine helps improve consistency and reduce manual labor.
Suitable Materials
Our hydraulic riveting machine can be used for different sheet metal materials, such as:
- Carbon steel
- Galvanized sheet
- Stainless steel
- Aluminum plate
- Copper plate
Different materials may require different pressure settings, tooling, and fastener types. For best results, the correct fastener and mold should be selected according to the workpiece thickness and material hardness.
Standard Tooling for Riveting Machines
Our hydraulic riveting machine can be supplied with standard tooling for common fastener sizes.
Standard tooling can include tooling for:
- Self-clinching nuts: M3 / M4 / M5 / M6 / M8
- Self-clinching standoffs: M3 / 3.5-M3 / M4 / M5 / M6
- Self-clinching screws: M3 / M4 / M5 / M6 / M8
- Eccentric molds for nuts, standoffs, and screws
- Upper molds such as D24-L90 / D18-90 / D18-25
With the correct tooling set, one machine can support many different riveting applications.

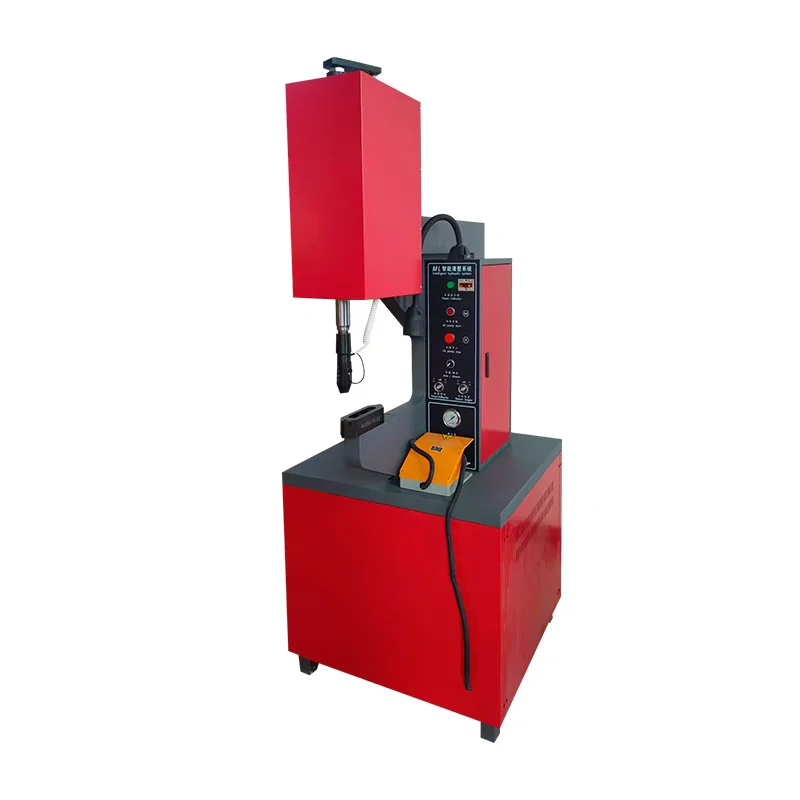

Key Features of Our Hydraulic Riveting Machine
Our hydraulic riveting machine is designed for practical production use in sheet metal factories.
Stable Hydraulic Pressure
The machine uses hydraulic pressure to provide stable and consistent riveting force. This helps ensure each fastener is pressed into the sheet metal properly.
Easy Operation
The machine is simple to operate and suitable for daily production. Operators can adjust the stroke and working height according to different parts and fasteners.
Wide Riveting Capacity
The machine can support common fastener types and sizes used in sheet metal fabrication, including self-clinching nuts, standoffs, and screws.
Safety Protection
Safety is very important in press riveting work. The machine is equipped with hand protection, motor protection, and leakage protection to help improve operational safety.
Suitable for Batch Production
For factories that need to install many fasteners every day, a hydraulic riveting machine can save time, reduce labor cost, and improve production efficiency.
Why Choose a Hydraulic Riveting Machine Instead of Manual Riveting?
Manual riveting can be slow, inconsistent, and labor-intensive. For professional sheet metal production, hydraulic riveting offers many advantages.
Higher Efficiency
A hydraulic riveting machine can install fasteners much faster than manual methods, especially for batch production.
Better Consistency
The pressure and stroke can be controlled, helping each fastener achieve a more consistent installation result.
Cleaner Appearance
Compared with welding or poor manual installation, press riveting provides a clean and professional finish.
Reduced Labor Cost
One operator can complete large quantities of riveting work with the help of the machine.
Stronger Fastener Installation
When the correct fastener, tooling, and pressure are used, the fastener can be firmly installed into the sheet metal.
Hydraulic Riveting Machine Specifications
We offer different models according to customer requirements. Common specifications can include:
| Item | Specification |
|---|---|
| Machine Type | Hydraulic riveting machine / Fastener insertion machine |
| Application | Sheet metal fastener installation |
| Suitable Fasteners | Nuts, standoffs, screws, rivet nut columns |
| Suitable Materials | Carbon steel, galvanized sheet, stainless steel, aluminum, copper |
| Power Supply | Customizable according to country requirements |
| Operation | Foot pedal control |
| Tooling | Standard tooling available |
| Safety Protection | Hand protection, motor protection, leakage protection |
For export markets, voltage can be customized according to the customer’s local power supply, such as 380V / 3 Phase / 50Hz or other configurations.
How to Choose the Right Riveting Machine
Before purchasing a hydraulic riveting machine, customers should consider the following points:
1. Fastener Type
Confirm whether you need to install self-clinching nuts, standoffs, screws, rivet nuts, or other fasteners.
2. Fastener Size
Common sizes include M3, M4, M5, M6, M8, M10, and M12. Different fasteners require different tooling.
3. Sheet Metal Material
Carbon steel, stainless steel, aluminum, and copper may require different pressure settings.
4. Sheet Thickness
The fastener must match the thickness of the sheet metal. If the sheet is too thin or too thick for the fastener, the riveting result may not be good.
5. Production Quantity
For batch production, a hydraulic riveting machine is a better choice because it improves speed and consistency.
6. Local Voltage
Before shipment, customers should confirm their local power supply so the machine can be prepared correctly.
Lead Time and Delivery
For standard hydraulic riveting machines, we can offer fast production and delivery.
For 1 riveting machine, we currently have stock available and can arrange shipment at any time.
For an order quantity of 10 riveting machines, the lead time is approximately 10 days.
We can also provide export packing and international shipping service according to customer requirements.
Why Choose YRS Industrial?
YRS Industrial supplies practical and cost-effective machinery for sheet metal fabrication. We focus on providing reliable machines, clear communication, and export support for global customers.
Our advantages include:
- Hydraulic riveting machines for sheet metal production
- Standard tooling available
- Support for different fastener types and sizes
- Export packing and shipping service
- Custom voltage options
- Fast delivery for available stock
- Professional support before and after sales
Whether you are a sheet metal workshop, electrical cabinet manufacturer, enclosure factory, or metal fabrication company, we can help you choose the right riveting machine for your production needs.
Hydraulic Riveting Machine Specifications
YRS Industrial offers different models of hydraulic riveting machines to meet different sheet metal fabrication requirements. The main models include 818, 824, and 1018. Customers can choose the suitable model according to riveting capacity, throat depth, pressure requirement, and production needs.
| Item | Model 818 | Model 824 | Model 1018 |
|---|---|---|---|
| Maximum Pressure | 80 kN | 80 kN | 100 kN |
| Processing Distance / Throat Depth | 450 mm | 600 mm | 450 mm |
| Fuselage Structure | Steel structure, non-load-bearing type | Steel structure, non-load-bearing type | Steel structure, non-load-bearing type |
| Riveting Capacity | FH-M8 / S-M12 | FH-M8 / S-M12 | FH-M10 / S-M12 |
| Hand Protection | Yes | Yes | Yes |
| Motor Protection | Yes | Yes | Yes |
| Leakage Protection | Yes | Yes | Yes |
| Displacement | 15 cc | 15 cc | 15 cc |
| Oil Pump Ratio | Combined high/low pressure oil pump | Combined high/low pressure oil pump | Combined high/low pressure oil pump |
| Power | 2.2 kW / 50 Hz | 2.2 kW / 50 Hz | 3.75 kW / 50 Hz |
| Voltage | AC380V / AC220V | AC380V / AC220V | AC380V / AC220V |
| Piston Rod Stroke | 200 mm | 200 mm | 200 mm |
| Adjustable Stroke | 150 mm | 150 mm | 150 mm |
| Machine Weight | 530 kg | 650 kg | 580 kg |
| Overall Dimensions | 850 × 1100 × 2050 mm | 850 × 1350 × 2050 mm | 850 × 1100 × 2050 mm |
| Movement Speed | 100 mm/s | 100 mm/s | 85 mm/s |
| Oil Tank Capacity | 70 L | 70 L | 70 L |
The 818 model is suitable for standard sheet metal riveting applications with a 450 mm throat depth. The 824 model provides a longer 600 mm processing distance, making it suitable for larger panels and deeper workpieces. The 1018 model offers higher pressure at 100 kN and supports larger riveting capacity up to FH-M10 / S-M12, making it a good choice for heavier-duty applications.
Before placing an order, customers can confirm their fastener type, sheet metal thickness, material, and local voltage requirement. We can recommend the most suitable hydraulic riveting machine model according to the actual production needs.
Frequently Asked Questions
What is a hydraulic riveting machine used for?
A hydraulic riveting machine is used to install self-clinching nuts, standoffs, screws, and other fasteners into sheet metal parts.
What materials can the machine work with?
The machine can be used for carbon steel, galvanized sheet, stainless steel, aluminum plate, copper plate, and other sheet metal materials.
Can the machine install M6 nuts?
Yes, the machine can be used for common fastener sizes, including M3, M4, M5, M6, and other sizes depending on the tooling.
Is the voltage customizable?
Yes, the voltage can be customized according to the customer’s local power supply.
Do you provide tooling?
Yes, standard tooling can be supplied with the machine. Custom tooling may also be available depending on the fastener requirements.
Is the machine suitable for batch production?
Yes, hydraulic riveting machines are very suitable for batch production because they improve speed, consistency, and efficiency.
